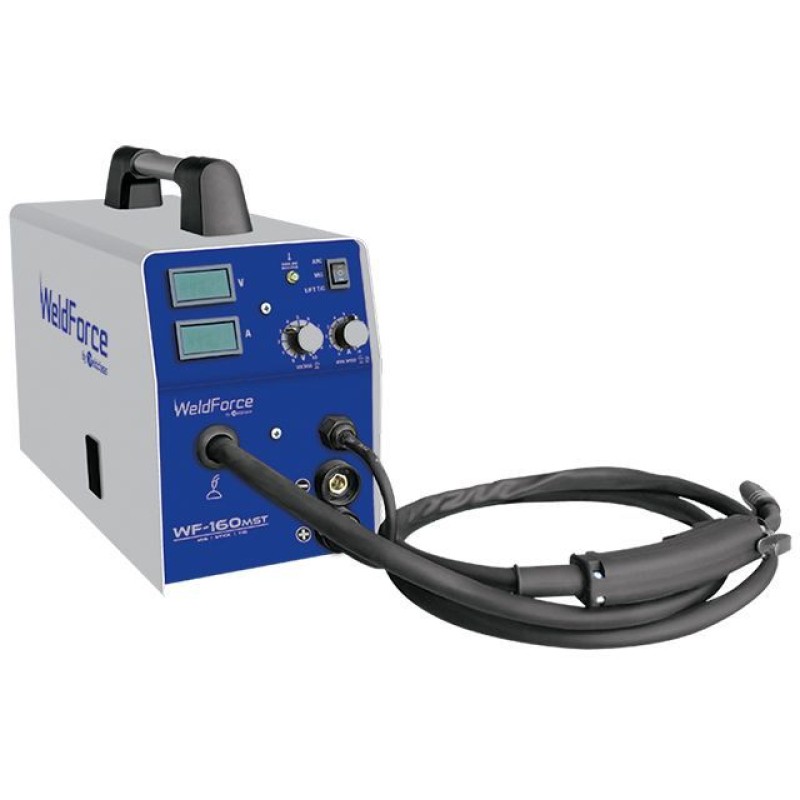

WELDER WELDFORCE WF-160MST 160AMP MIG/STICK/TIG 240V 10A
Category:
MULTI PROCESS
Features
- Takes 1kg (D100mm) or 5kg (D200mm) spools
- Digital Readout Displays
- Weighs only 9kg - compact, robust & lightweight
- 12 Month warranty*
Includes
- MIG Torch BZL 15 2.5m (direct connect)
- Earth Lead 3m
- Stick Lead 3m
- Driver Roller for 0.8/0.9mm steel/solid wire
- Driver Roller for 0.8/0.9mm gasless wire
Specifications
| Dimensions (incl. handle) | 395L x 165W x 290H mm |
| Standard | AS 60974.1 |
| Power Supply | 240V 1-Phase |
| Output Cable Terminals | 10-25 (Standard) |
| Protection Class | IP21 |
| MIG | |
| Welding Current / Voltage Output | 40A/15V - 160A/22V |
| Duty Cycle (40°) | 160A @ 20% |
| 130A @ 60% | |
| 100A @ 100% | |
| Wire Sizes / Capacity | 0.6, 0.8, 0.9mm |
| Stick (MMA) & TIG | |
| Welding Current Output | 30A – 140A |
| Duty Cycle | 140A @ 20% |
| MMA Electrode Size / Capacity | 1.6 – 3.2mm |
| TIG Tungsten Electrode Size / Capacity | 1.6mm |
