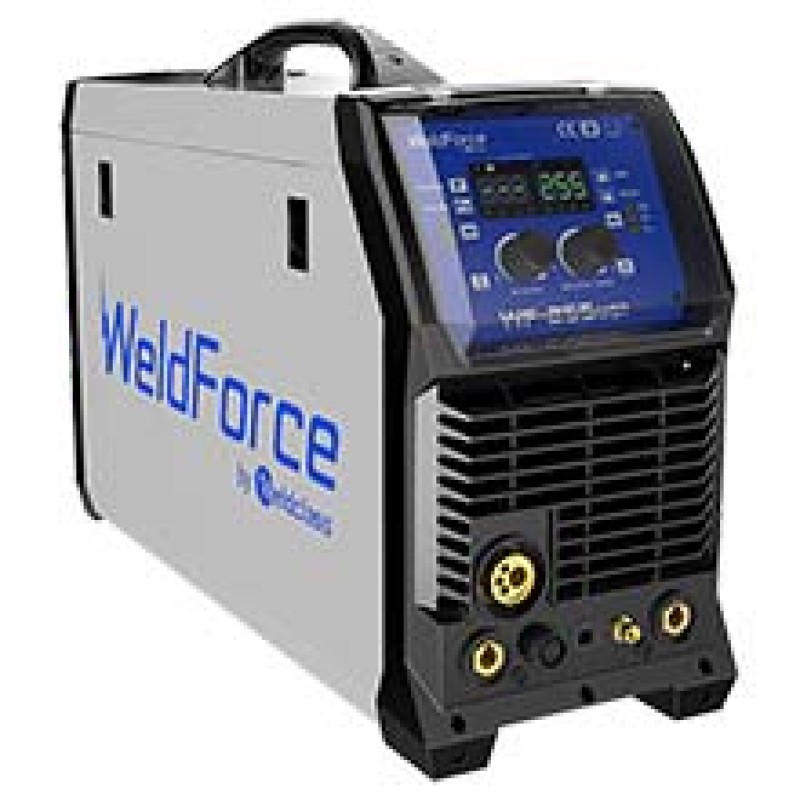

WELDER WELDFORCE WF-255MST 250AMP MIG/STICK/TIG 240V 15A SYNERGIC DIGITAL
Category:
MULTI PROCESS
Features
- Power Factor Correction (PFC) - reduced power draw, increased duty-cycle, ideal for long leads & generators
- Manual or Synergic (enter material type & thickness and machine will set parameters automatically)
- 20+ Pre-set Programs - for different materials
- Job Save - store custom settings for up to 20 jobs
- Geared 4-Roll Wire Drive System - for super reliable wirefeeding
- Takes 5kg (D200mm) or 15kg (D300mm)spools
- Spool Gun Ready
- Generator Compatible - min 13kva, ideal 15+kva
- Fan-on-Demand - reduces dust intake
- Stressed-Tested - to 440V & over-specified componentry for reliability
- 3 year warranty*
- Robust & Portable, weighs 26kg
- Optional Stick/MMA VRD function (Supplied as standard with VRD NOT active. VRD can be activated by an authorised agent/distributor if required)
Includes
- MIG Torch 4m BZL 25
- Earth Lead H/Duty 4m
- Stick Lead H/Duty 4m
- Gas Regulator
- Driver Roller for 0.6/0.8mm steel/solid wire
- Driver Roller for 0.9/1.2mm steel/solid wire
- Driver Roller for 0.8/0.9mm gasless wire
- Driver Roller for 1.0/1.2mm aluminium wire
- Cable Retaining Strap
- Long Power Input Lead 3m
Specifications
| Dimensions (incl. handle) | L680 x W250 x H480 mm |
| Weight (Power Source) | 26 kg |
| Standard | AS 60974.1 |
| Power Supply | 240V 1-Phase |
| Power Factor | 0.99 |
| Output Cable Terminals | 35-50 (Large) |
| MIG* | |
| Welding Current / Voltage Output | 10A/16V - 250A/26.5V |
| Duty Cycle | 250A @ 35% |
| 195A @ 60% | |
| 150A @ 100% | |
| Wire Sizes / Capacity | 0.6, 0.8, 0.9, 1.0, 1.2mm |
| Stick (MMA)* | |
| Welding Current Output | 10 – 250A |
| Duty Cycle | 250A @ 30% |
| MMA Electrode Size / Capacity | 1.6 – 4.0mm |
| TIG* | |
| Welding Current Output | 10 – 250A |
| Duty Cycle | 250A @ 35% |
| Tungsten Electrode Size / Capacity | 1.6 – 2.4mm |
