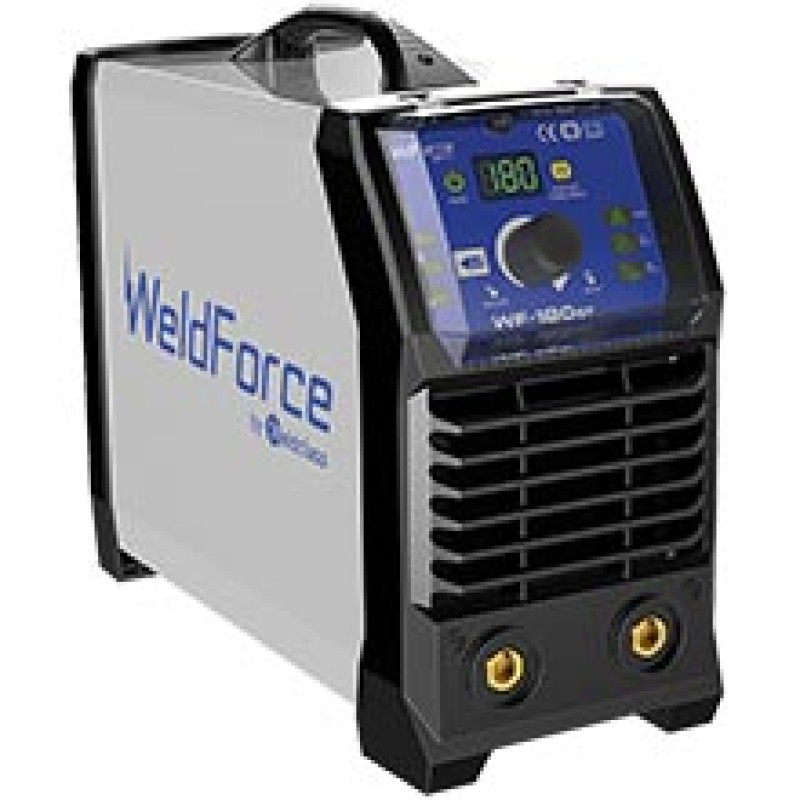

WELDER WELDFORCE WF-180ST 180AMP STICK/TIG 240V 15A
Category:
MULTI PROCESS
Features
- Weighs only 4.5kg - compact, robust & lightweight
- LCD Digital Meter
- Adjustable Hot Start & Arc Force
- Optional VRD (Supplied as standard with VRD NOT active. VRD can be activated by an authorised agent/distributor if required)
- Generator Compatible - min 8kva, ideal 10+kva
- Stressed-Tested - to 440V & over-specified componentry for reliability
- 3 year warranty*
Includes
- Earth Lead 4m
- Stick Lead 4m
- Large Carry Bag
- Shoulder Strap
- Cable Strap
- Long Power Lead 3m
Specifications
| Dimensions (incl. handle) | 290L x W135 x H270 mm |
| Standard | AS 60974.1 |
| Power Supply | 240V 1-Phase |
| Open Circuit Voltage | 75V (VRD on 13.5V) |
| Output Cable Terminals | 35-50 (large) |
| Welding Current Output | 10A – 180A |
| Duty Cycle (MMA) | 180A @ 18% |
| 99A @ 60% | |
| 76A @ 100% | |
| MMA Electrode Size / Capacity | 1.6 – 3.2mm |
| TIG Tungsten Electrode Size / Capacity | 1.6 - 2.4mm |
