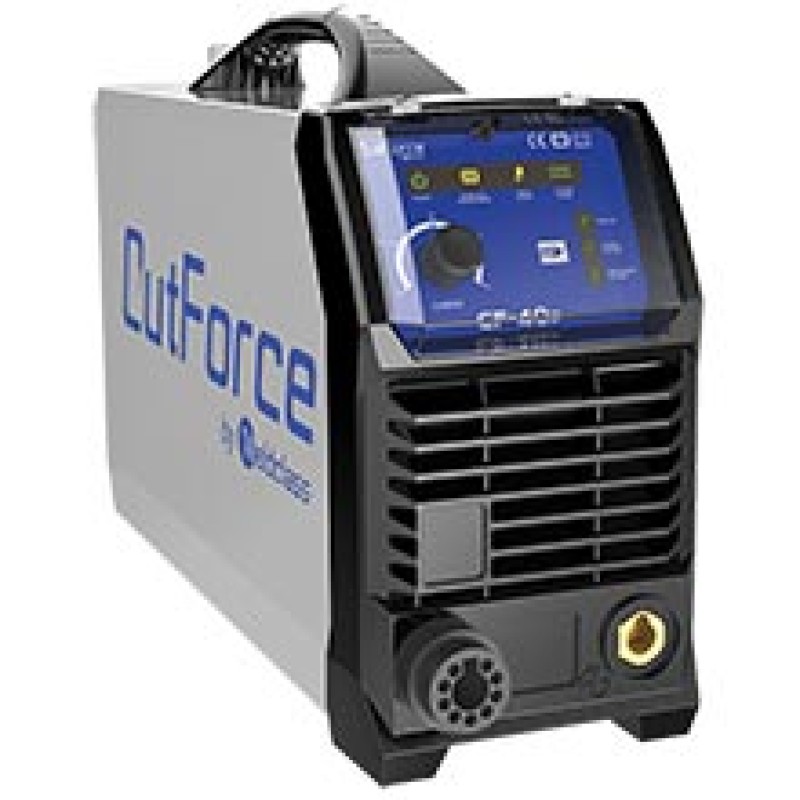

PLASMA CUTTER KIT CUTFORCE CF-45P 240V 15A
Category:
PLASMA CUTTING
Features
- Weighs only 8kg - compact, robust & lightweight
- Power Factor Correction (PFC) - reduced power draw, increased duty-cycle, ideal for long leads & generators
- High Quality Plasma Torch with Euro Connection
- Reliable Pilot Arc Ignition - non-HF avoids EMF interference
- Generator Friendly - min 8kva, ideal 10+kva
- Intelligent Protection & Warning System - prevents costly torch damage
- Stressed-Tested - to 440V & over-specified componentry for reliability
- Perforated Plate / Expanded Mesh Cutting Mode
- 3 year warranty*
Includes
- Plasma Torch 6m with Torch Parts Kit
- Air Regulator with filter & Nitto style air fitting
- Earth Lead 4m
- Large Carry Case
- Shoulder Strap
- Cable Strap
- Long Power Input Lead 3m
Specifications
| Dimensions (incl. handle) | 520L x W150 x H310 mm |
| Standard | AS 60974.1 |
| Power Supply | 240V 1-Phase |
| Current Output | 20A – 40A |
| Duty Cycle | 40A @ 30% |
| 30A @ 60% | |
| Cut Capacity | Quality Cutting @ >200mm/min |
| Mild Steel | <=12mm |
| Stainless Steel | <=12mm |
| Aluminium | <=8mm |
| Cut Capacity | Quality Cutting Max Recommended |
| Mild Steel | <=16mm |
| Stainless Steel | <=16mm |
| Aluminium | <=12mm |
| Copper | <=8mm |
| Cut Capacity | Severance (Poor Quality Cut) |
| Mild Steel | <=20mm |
| Stainless Steel | <=20mm |
