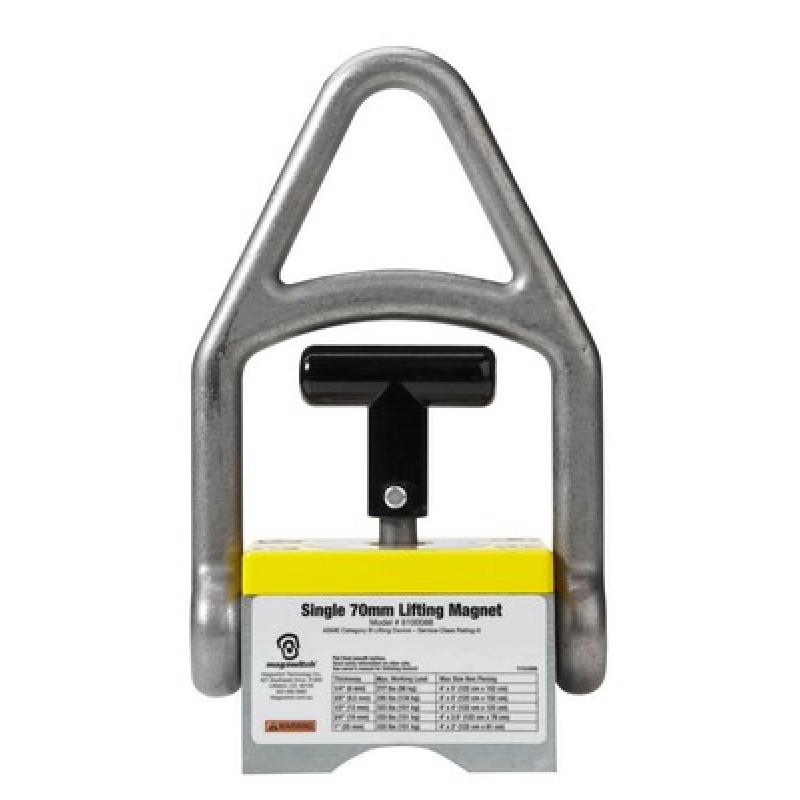

MLAY600 LIFTING MAGNET
Category:
MAGNETIC LIFTERS
Specifications
| Max Breakaway* | 600 lbs/272 kg |
| Safe Working Load* | 200 lbs/90 kg |
| Full Saturation Thickness | 1/2” / 9.5mm |
| Max Safe Shear* | 70 lbs/31.8 kg |
| Minimum Thickness for De-Stack | 1/2” / 9.5mm |
| Net Weight | 4.4 lbs/2.0 kg |
| Overall Height | 184.0 mm |
| Magnetic Pole Footprint | 75.0 x 51.5 mm |
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment.
