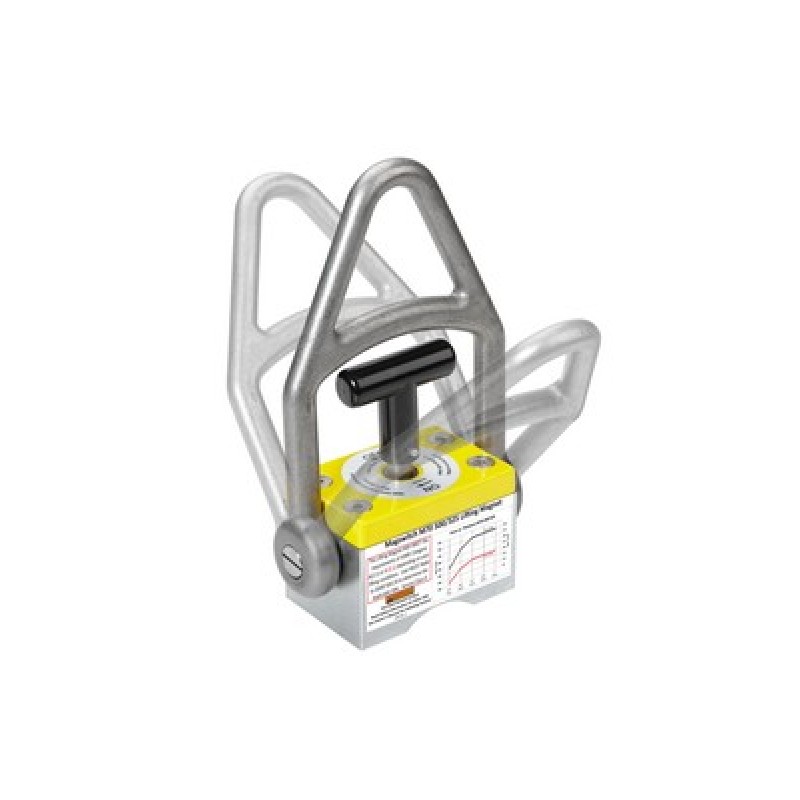

MLAY1000 LIFTING MAGNET
Category:
MAGNETIC LIFTERS
Specifications
| Max Breakaway* | 1000 lbs/454 kg |
| Safe Working Load* | 333 lbs/151 kg |
| Full Saturation Thickness | 1/2” / 12.7mm |
| Max Safe Shear* | 50 lbs/22.7 kg |
| Minimum Thickness for De-Stack | 3/4” / 12.7mm |
| Net Weight | 11.5 lbs/5.2 kg |
| Overall Height | 253.12 mm |
| Magnetic Pole Footprint | 108.0 x 72.0 mm |
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment.
