MITRE SAW 216MM 1800W CROSS CUT DWS777-XE DEWALT The classic saw design improved and updated for the modern userNew 1800 Watt motor for powerful cutt.. Product #: 3036-803045 Regular price: $0.00 $0.00

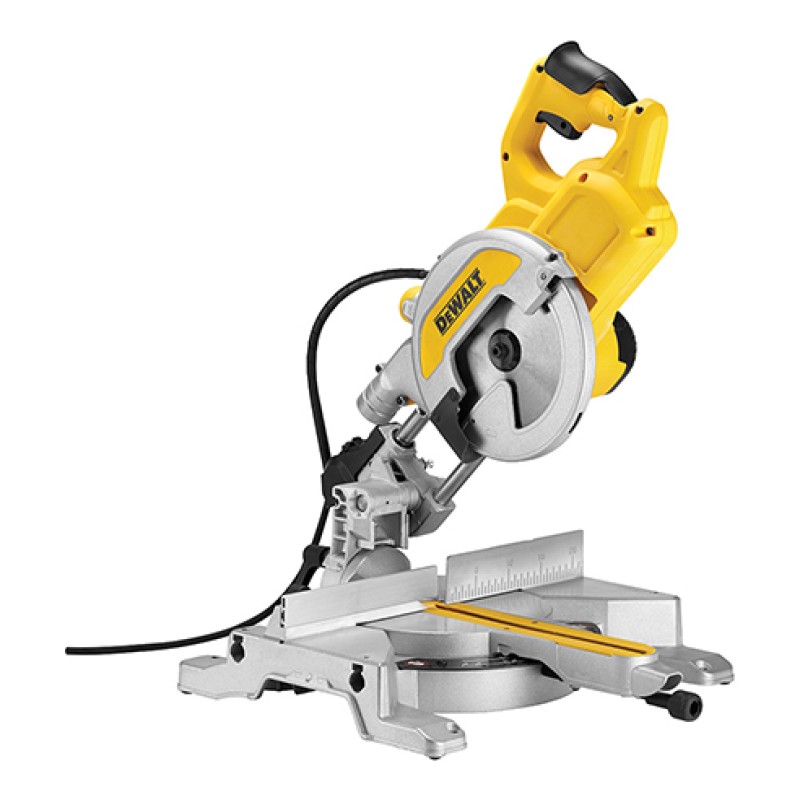

MITRE SAW 216MM 1800W CROSS CUT DWS777-XE DEWALT

Category: MITRE SAW
Please to view prices and ordering functions or ask us about an account.

  • The classic saw design improved and updated for the modern user
  • New 1800 Watt motor for powerful cutting in all materials (1600 Watt Low Voltage version UK Only)
  • XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
  • New Single Point Dust Extraction Airlock compatible
  • The base and fence have been machined to meet the accuracy requirements of the most demanding applications
  • Head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
  • Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
  • Sliding left hand fence with measuring scale for improved material support and management
  • Compact internal rail design for huge cutting capacity in a highly transportable format

Specifications

Power Input1800 Watts
Power Output1100 Watt
Blade Speed6300 rpm
Blade Diameter216mm
Blade Bore30mm
Bevel Capacity48°
Mitre Capacity [right/left]50/50°
Cutting Capacity at 90°/45° (W x H)173 x 62mm
Cutting Capacity at 90°/90° (W x H)270 x 62mm
Cutting Capacity at 90°/90° (W x H)270 x 60mm
Cutting Capacity at 45°/90° (W x H)189 x 62mm
Cutting Capacity at 45°/90° (W x H)190 x 60mm
Cutting Capacity at 90°/45° (W x H)270 x 48mm
Max. Cutting Capacity at 45°/45°190x48mm
Max. Depth of Cut [Saws]80mm
Weight14.0kg
