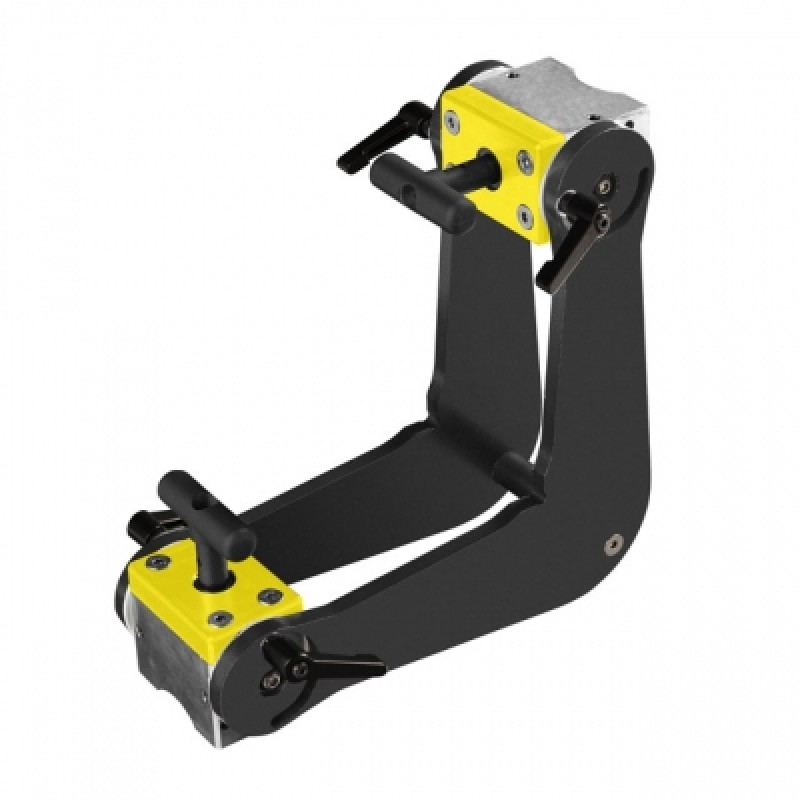

MAGSWITCH BOOMERANGLE 600 (MAGNET STRENGTH 272KG OF FORCE)
Category:
MAGNETIC HOLDING
Specifications
| Max Breakaway* | 600 lbs/272 kg |
| Full Saturation Thickness | 3/8” / 10mm |
| 2:1 Shear Working Load* | 61 lbs/ 27 kg |
| Net Weight | 9.7 lbs/4.4 kg |
| Overall Height | 272 mm |
| Magnetic Pole Footprint | 75mm x 51.5mm |
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment.
