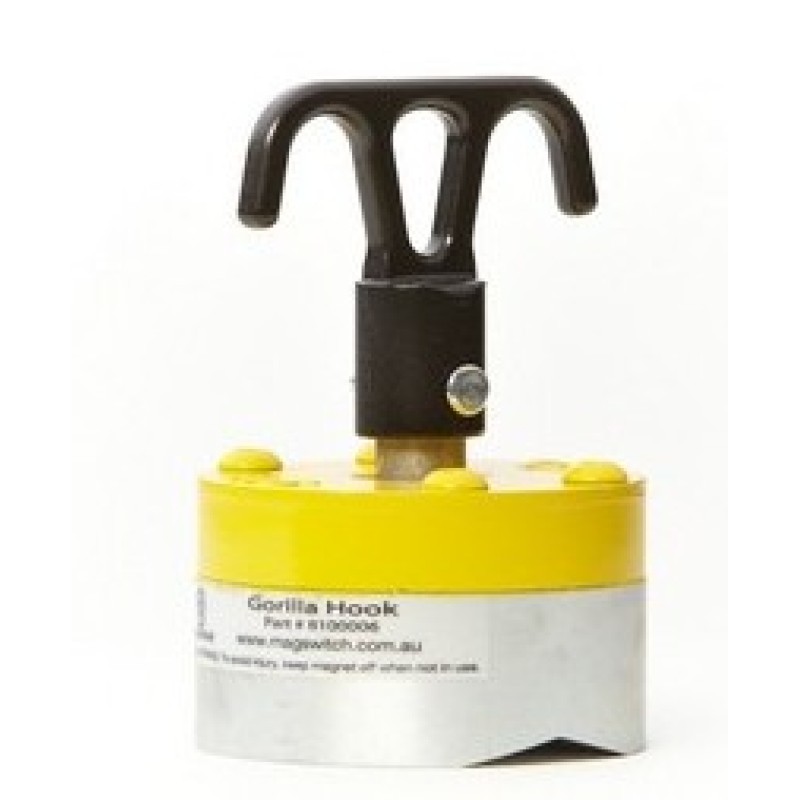

MAGSWITCH MAG-UTILITY HOOK 25 (MAGNET STRENGTH 18KG OF FORCE)
Category:
MAGNETIC HOLDING
Specifications
| Magnet Maximum Breakaway* | 120 lbs / 52.5 kg |
| Usable Max Breakaway* | 25 lbs/11 kg |
| Full Saturation Thickness | 11g / 3.05mm |
| 2:1 Shear Working Load* | 20 lbs / 9 kg |
| Net Weight | 0.4 lbs/0.2 kg |
| Overall Height | 89 mm |
| Magnetic Pole Footprint | 40mm Diameter |
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment.
