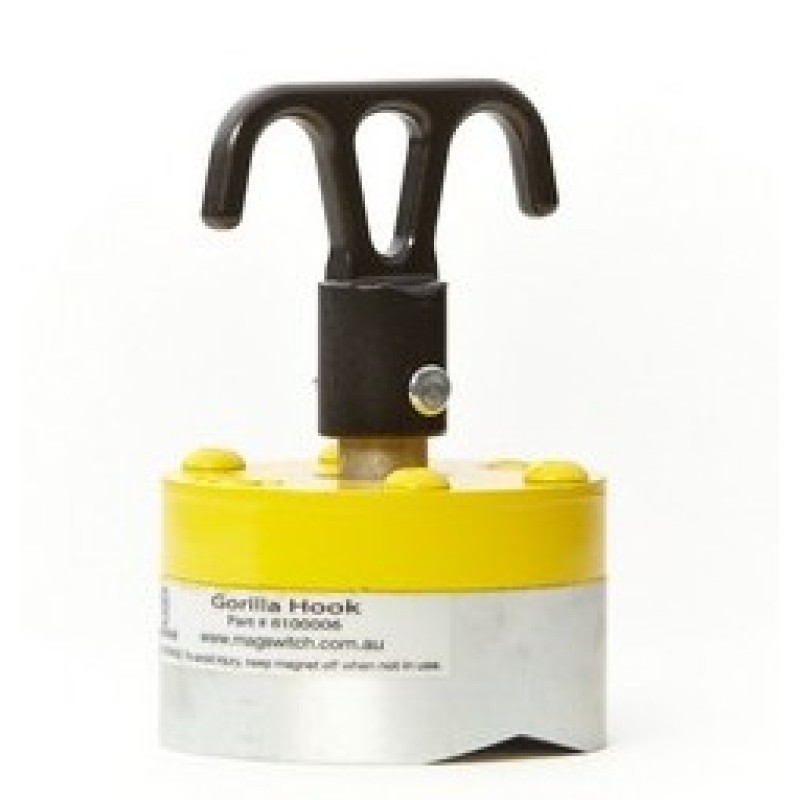

MAGSWITCH MAG-UTILITY HOOK 40 (MAGNET STRENGTH 52KG OF FORCE)
Category:
MAGNETIC HOLDING
Specifications
| Max Breakaway* | 40 lbs/18 kg |
| Full Saturation Thickness | 1” / 25.4 mm |
| 2:1 Shear Working Load* | 28 lbs/12.5 kg |
| Net Weight | 1.8 lbs/0.8 kg |
| Overall Height | 103 mm |
| Magnetic Pole Footprint | 69mm Diameter |
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment.
