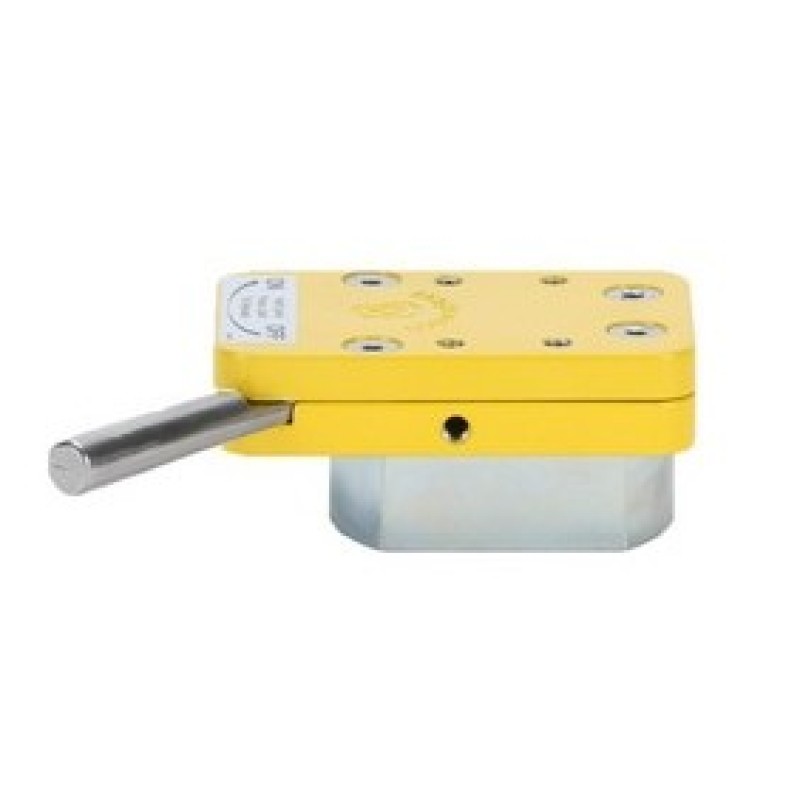

MAGSWITCH MAGMOUNT 300 (MAGNET STRENGTH 111KG OF FORCE)
Category:
MAGNETIC HOLDING
Specifications
| Max Breakaway* | 246 lbs/111 kg |
| Full Saturation Thickness | 3/16 in /4.75 mm |
| Net Weight | 1.2 lbs/0.5 kg |
| Overall Height | 1.7 in /43.8 mm |
| Magnetic Pole Footprint | 71.8 x 51.5 mm |
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment.
