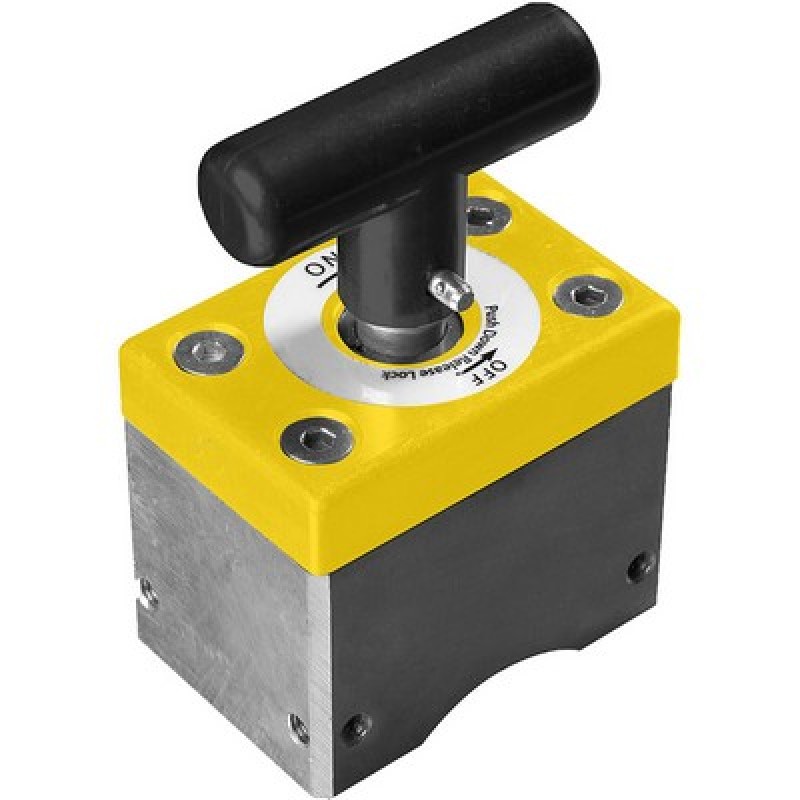

MAGSWITCH MAGSQUARE 400 (MAGNET STRENGTH 181KG OF FORCE)
Category:
MAGNETIC HOLDING
Specifications
| Max Breakaway* | 400 lbs/181 kg |
| Full Saturation Thickness | 0.25 in/6mm |
| 2:1 Shear Working Load* | 40 lbs/18 kg |
| Net Weight | 2.0 lbs/0.91 kg |
| Overall Height | 90 mm |
| Magnetic Pole Footprint | 64mm x 41.26mm |
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment.
