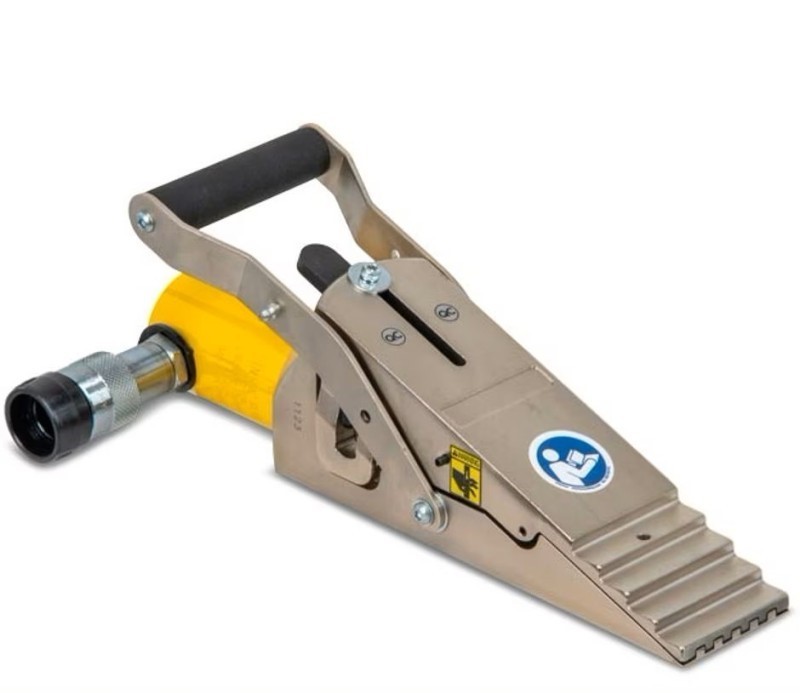

ENERPAC WEDGE VERTICAL LIFT HYDRAULIC 16T LW16
Category:
LIFTING TOOLS
- Minimized access gap for greater accessibility on applications with limited insertion space
- Secure, stable lifting and lowering motion with no slippage
- Single-acting spring return cylinder allows for automatic, mechanical retraction
- Includes safety block SB2
- Can be used in multiple set-up.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spread (mm) | 21 |
| Power Source | Hydraulic |
| Maximum Lifting Force (kN) | 157 |
| Capacity (kN) | 157 |
| Stroke (mm) | 21 |
| Minimum Clearance Gap (mm) | 10 |
| Maximum Lift Per Stage | 21 |
| Maximum Lifting Height (mm) | 51,5 |
| Maximum Lifting Height Using Stepped Block (mm) | 69,0 |
| Oil Capacity (cm3) | 78 |
| Weight (kg) | 7,0 |
