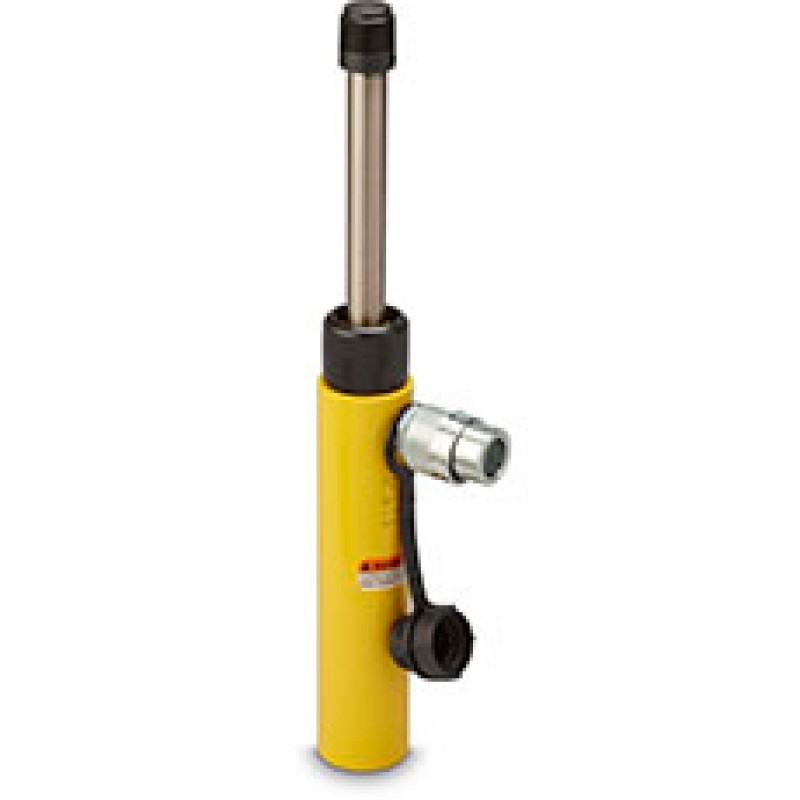

ENERPAC CYLINDER HYDRAULIC PULL 2.5T X 127MM BRC25
Category:
PULL CYLINDER
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Single-acting spring return
- Replaceable links
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 2.5 |
| Maximum Cylinder Capacity Retract (kN) | 24 |
| Stroke (mm) | 127 |
| Collapsed Height A (mm) | 264 |
| Extended Height B (mm) | 391 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Retract (cm2) | 3,5 |
| Oil Capacity Retract (cm3) | 45 |
| Surface Treatment | Paint |
| Weight (kg) | 1,8 |
