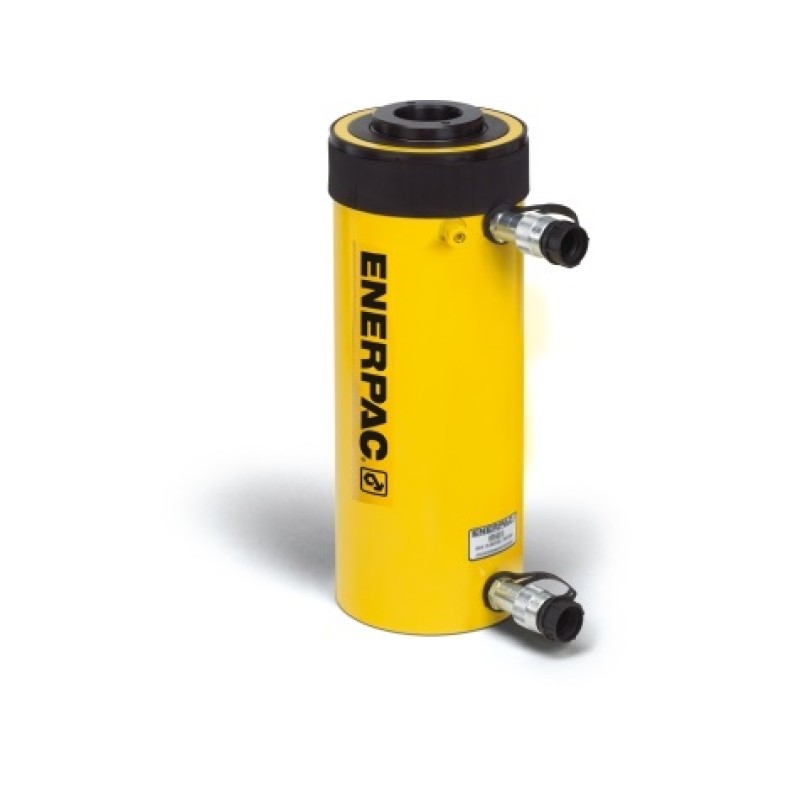

ENERPAC CYLINDER DOUBLE ACTING HOLLOW 95T X 257MM RRH10010
Category:
RRH SERIES
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing
- Double-acting operation for fast retraction
- Nickel-plated, floating center tube increases product life
- CR400 couplers and dust caps included on all models
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 100 |
| Maximum Cylinder Capacity Advance (kN) | 931 |
| Maximum Cylinder Capacity Retract (kN) | 612 |
| Stroke (mm) | 257 |
| Collapsed Height A (mm) | 460 |
| Extended Height B (mm) | 717 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Hollow |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 133,0 |
| Cylinder Effective Area Retract (cm2) | 87,4 |
| Oil Capacity Advance (cm3) | 3420 |
| Oil Capacity Retract (cm3) | 2246 |
| Surface Treatment | Paint |
| Weight (kg) | 106 |
