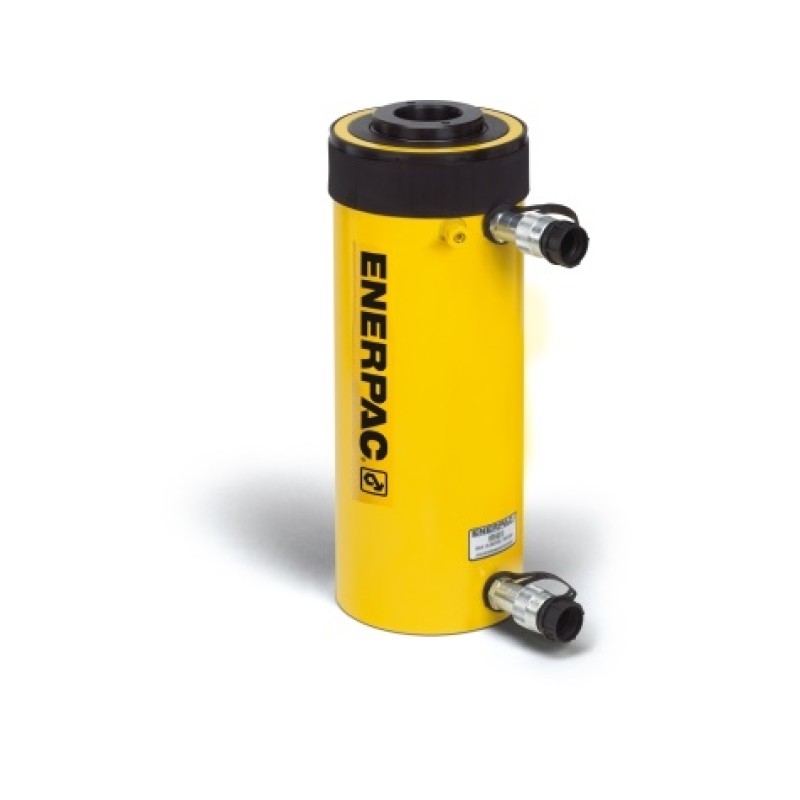

ENERPAC CYLINDER DOUBLE ACTING HOLLOW 30T X 258MM RRH3010
Category:
RRH SERIES
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing
- Double-acting operation for fast retraction
- Nickel-plated, floating center tube increases product life
- CR400 couplers and dust caps included on all models
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 326 |
| Maximum Cylinder Capacity Retract (kN) | 213 |
| Stroke (mm) | 258 |
| Collapsed Height A (mm) | 431 |
| Extended Height B (mm) | 689 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Hollow |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 46,6 |
| Cylinder Effective Area Retract (cm2) | 30,4 |
| Oil Capacity Advance (cm3) | 1202 |
| Oil Capacity Retract (cm3) | 784 |
| Surface Treatment | Paint |
| Weight (kg) | 27 |
