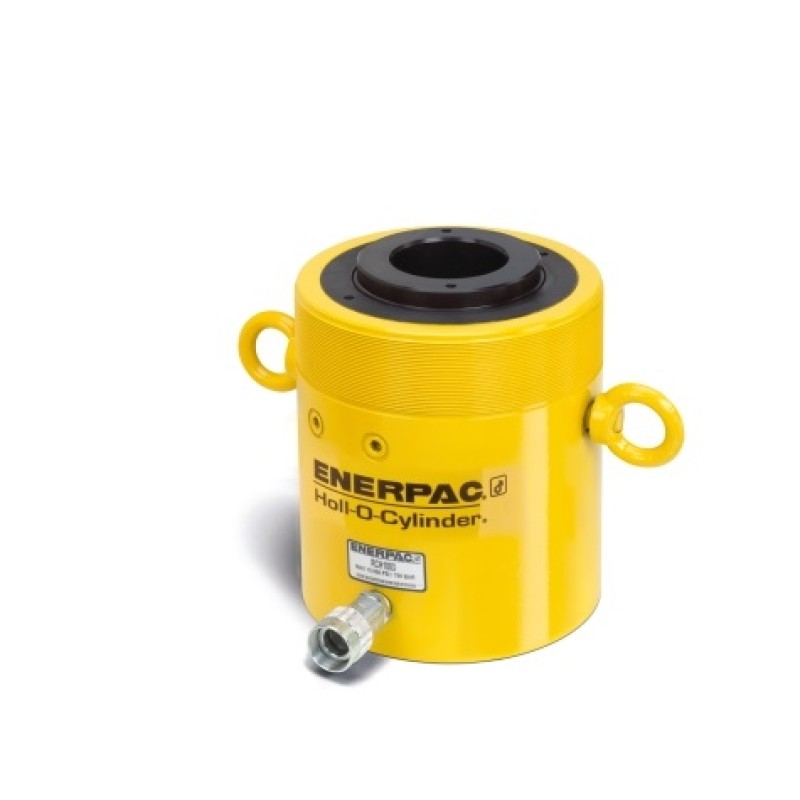

ENERPAC CYLINDER HOLLOW PLUNGER 60T X 76MM RCH603
Category:
RCH SERIES
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 218 kNs increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 60 |
| Maximum Cylinder Capacity Advance (kN) | 576 |
| Stroke (mm) | 76 |
| Collapsed Height A (mm) | 247 |
| Extended Height B (mm) | 323 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Hollow |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 82,3 |
| Oil Capacity Advance (cm3) | 626 |
| Surface Treatment | Paint |
| Weight (kg) | 28,1 |
