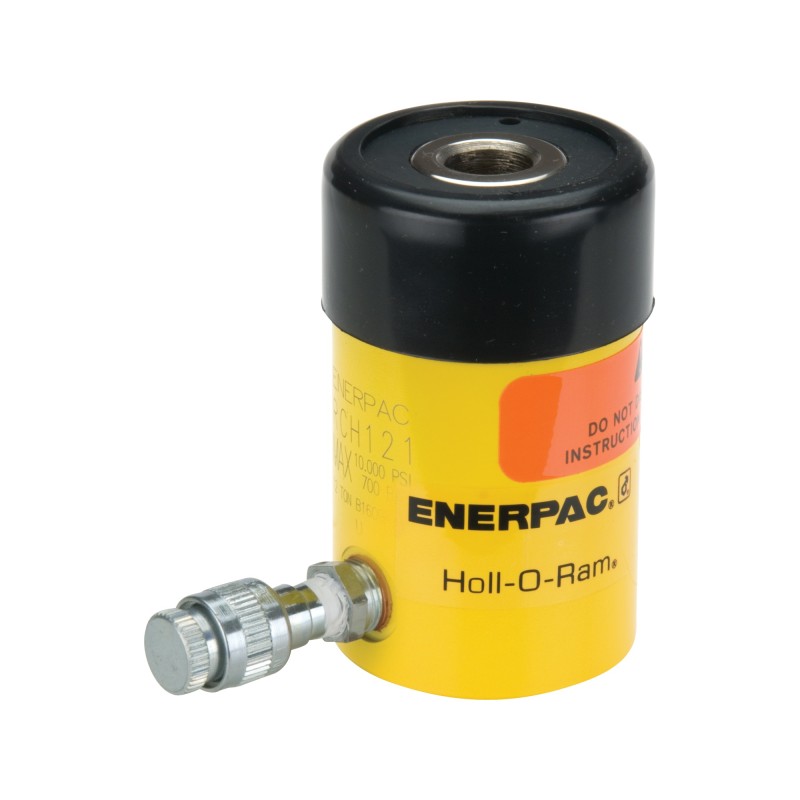

ENERPAC CYLINDER HOLLOW PLUNGER 13T X 8MM RCH120
Category:
RCH SERIES
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 218 kNs increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 12 |
| Maximum Cylinder Capacity Advance (kN) | 125 |
| Stroke (mm) | 8 |
| Collapsed Height A (mm) | 55 |
| Extended Height B (mm) | 63 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Hollow |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 17,9 |
| Oil Capacity Advance (cm3) | 14 |
| Surface Treatment | Paint |
| Weight (kg) | 1,5 |
