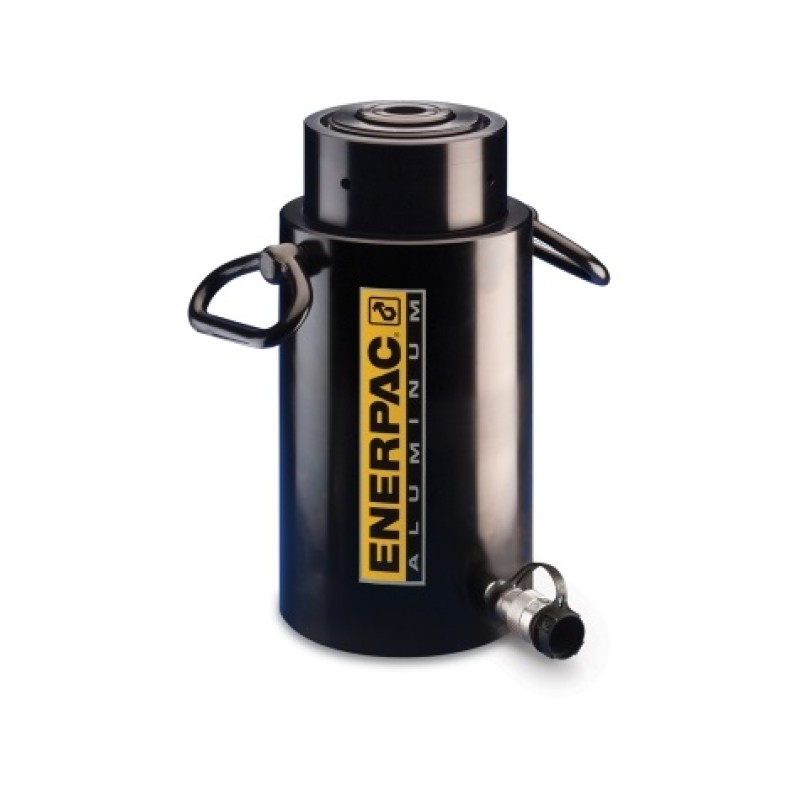

ENERPAC CYLINDER ALUMINIUM SINGLE ACTING LOCKNUT 150T X 150MM RACL1506
Category:
ALUMINIUM LOCK NUT CYLINDER
- Aluminum Lock Nut provides mechanical load holding for extended periods
- Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Composite bearings increase cylinder life and side load resistance
- Handles included on all models
- Steel base plate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 150 |
| Maximum Cylinder Capacity Advance (kN) | 1589 |
| Stroke (mm) | 150 |
| Collapsed Height A (mm) | 423 |
| Extended Height B (mm) | 573 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Solid |
| Material | Aluminum |
| Cylinder Effective Area Advance (cm2) | 227,0 |
| Oil Capacity Advance (cm3) | 3405 |
| Surface Treatment | Anodized |
| Weight (kg) | 40,2 |
