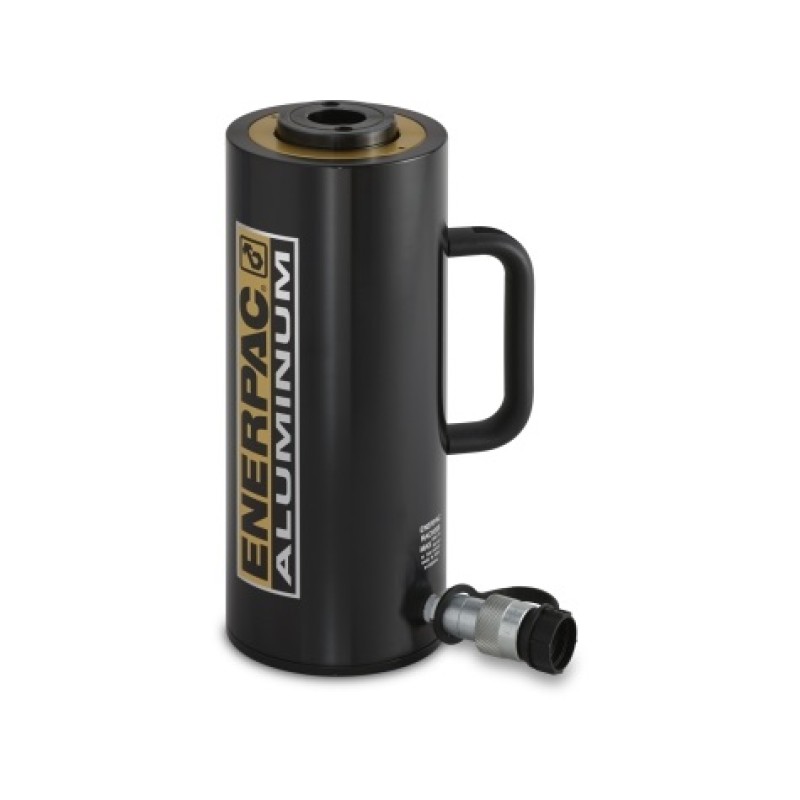

ENERPAC CYLINDER ALUMINIUM SINGLE ACTING HOLLOW 30T X 50MM RACH302
Category:
ALUMINIUM HOLLOW PLUNGE CYLINDER
- Hollow plunger design allows for both pull and push forces
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Floating center tube increases seal life
- Steel baseplate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 358 |
| Stroke (mm) | 50 |
| Collapsed Height A (mm) | 208 |
| Extended Height B (mm) | 258 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Hollow |
| Material | Aluminum |
| Cylinder Effective Area Advance (cm2) | 51,1 |
| Oil Capacity Advance (cm3) | 256 |
| Surface Treatment | Anodized |
| Weight (kg) | 8,0 |
