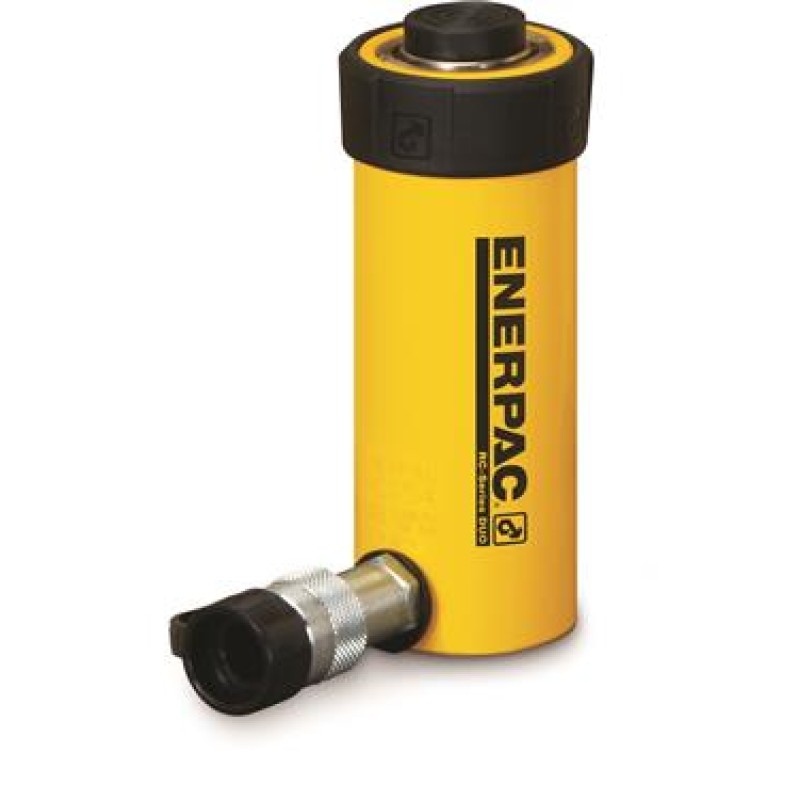

ENERPAC CYLINDER HYDRAULIC 15T X 25MM RC151
Category:
RC SERIES
- Unique GR2 Bearing Design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 15 |
| Maximum Cylinder Capacity Advance (kN) | 142 |
| Stroke (mm) | 25 |
| Collapsed Height A (mm) | 124 |
| Extended Height B (mm) | 149 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Solid |
| Material | Steel |
| Oil Capacity Advance (cm3) | 51 |
| Surface Treatment | Paint |
| Weight (kg) | 3,3 |
