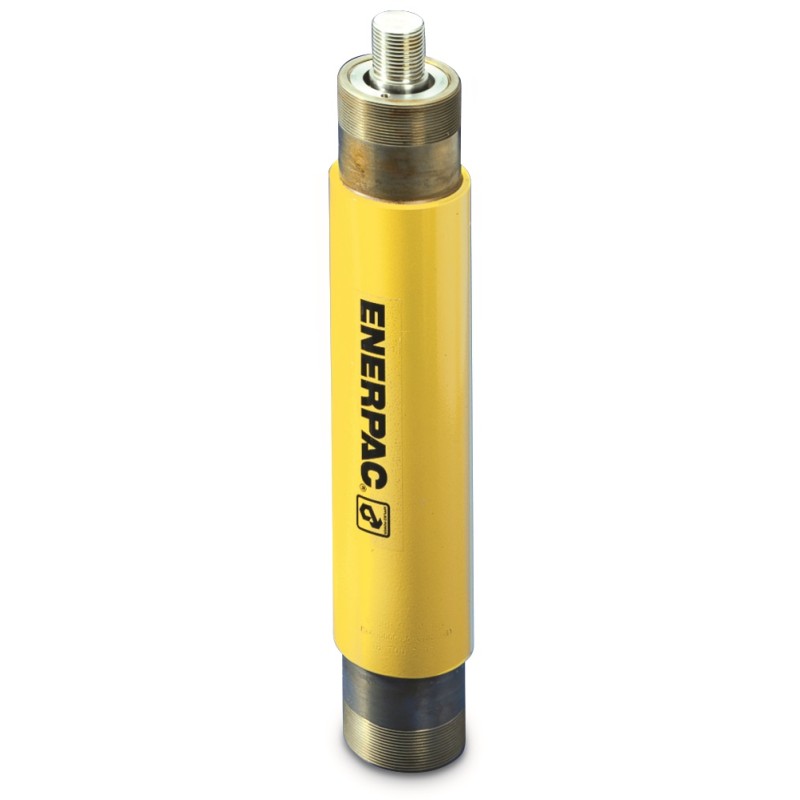

ENERPAC DOUBLE ACTING CYLINDER 25T X 260MM RD2510
Category:
RD SERIES
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (psi) | 10000 |
| Capacity Class (tonnage) | 25 |
| Maximum Cylinder Capacity Advance (tons) | 25 |
| Maximum Cylinder Capacity Retract (tons) | 11 |
| Stroke (in) | 10.25 |
| Collapsed Height A (in) | 20.69 |
| Extended Height B (in) | 30.94 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 4.91 |
| Cylinder Effective Area Retract (in2) | 2.15 |
| Oil Capacity Advance (in3) | 50.31 |
| Oil Capacity Retract (in3) | 22.01 |
| Cylinder Capacity Advance at 5000 psi (lbs) | 24500 |
| Cylinder Capacity Retract at 5000 psi (lbs) | 10750 |
| Surface Treatment | Paint |
| Weight (lbs) | 46 |
