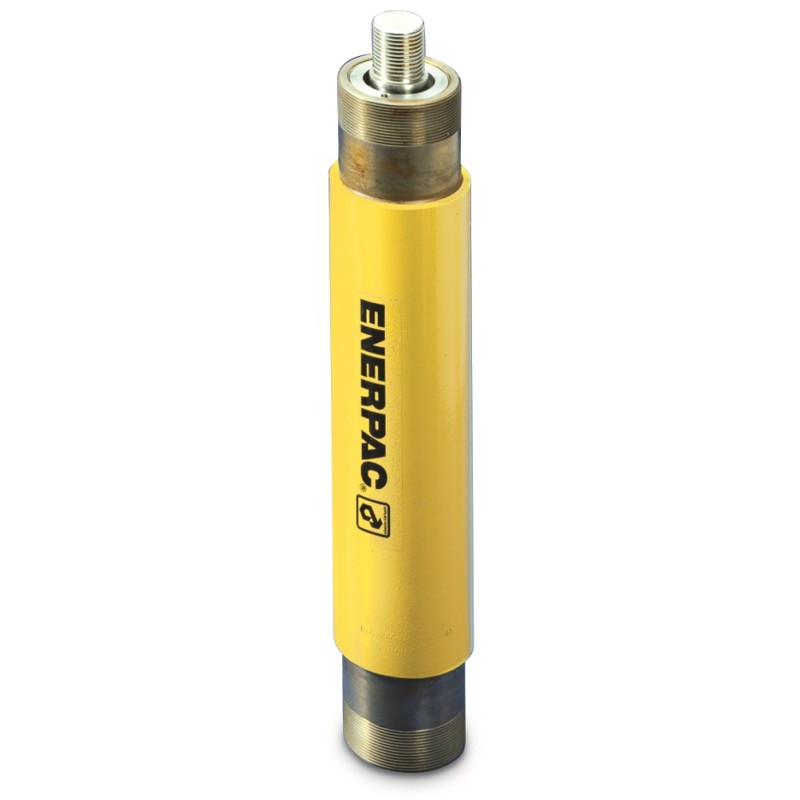

ENERPAC DOUBLE ACTING CYLINDER 16T X 260MM RD1610
Category:
RD SERIES
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (psi) | 10000 |
| Capacity Class (tonnage) | 16 |
| Maximum Cylinder Capacity Advance (tons) | 16 |
| Maximum Cylinder Capacity Retract (tons) | 8 |
| Stroke (in) | 10.25 |
| Collapsed Height A (in) | 19.31 |
| Extended Height B (in) | 29.56 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 3.14 |
| Cylinder Effective Area Retract (in2) | 1.66 |
| Oil Capacity Advance (in3) | 32.2 |
| Oil Capacity Retract (in3) | 16.98 |
| Cylinder Capacity Advance at 5000 psi (lbs) | 15500 |
| Cylinder Capacity Retract at 5000 psi (lbs) | 8300 |
| Surface Treatment | Paint |
| Weight (lbs) | 29 |
