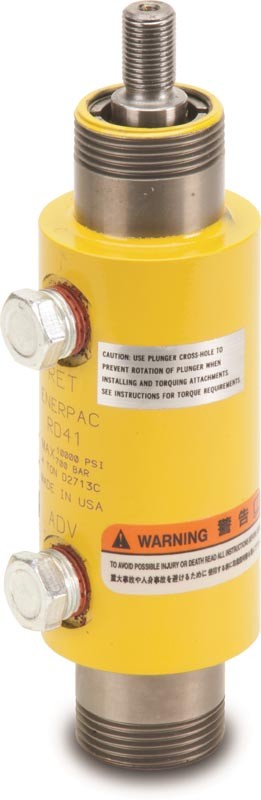

ENERPAC DOUBLE ACTING CYLINDER 4T X 28MM RD41
Category:
RD SERIES
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (psi) | 10000 |
| Capacity Class (tonnage) | 4 |
| Maximum Cylinder Capacity Advance (tons) | 4 |
| Maximum Cylinder Capacity Retract (tons) | 2 |
| Stroke (in) | 1.13 |
| Collapsed Height A (in) | 7.31 |
| Extended Height B (in) | 8.44 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 0.79 |
| Cylinder Effective Area Retract (in2) | 0.34 |
| Oil Capacity Advance (in3) | 0.88 |
| Oil Capacity Retract (in3) | 0.39 |
| Cylinder Capacity Advance at 5000 psi (lbs) | 3900 |
| Cylinder Capacity Retract at 5000 psi (lbs) | 1720 |
| Surface Treatment | Paint |
| Weight (lbs) | 4.8 |
