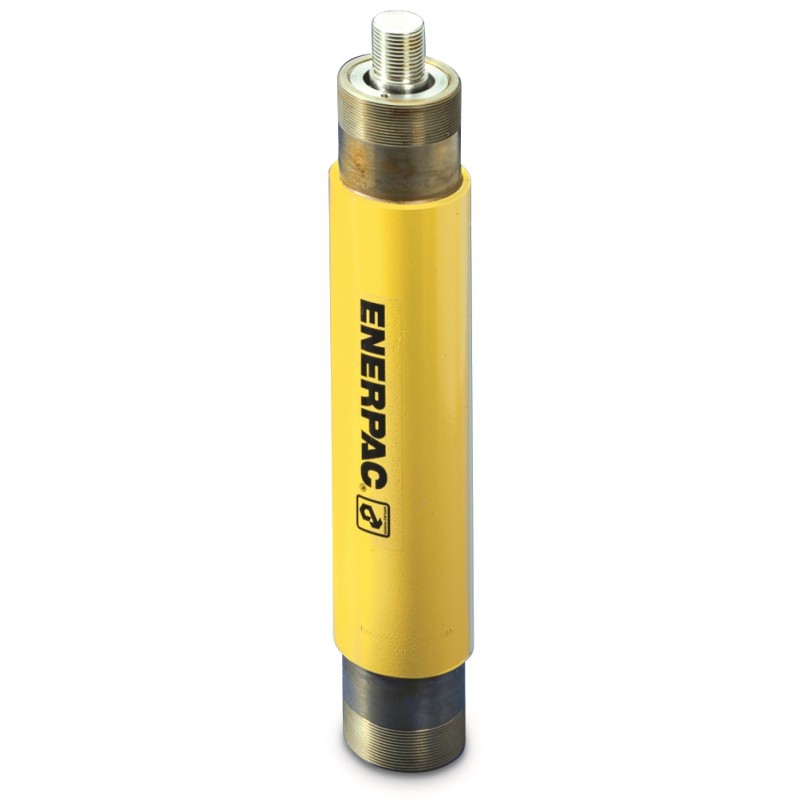

ENERPAC DOUBLE ACTING CYLINDER 9T X 28MM RD91
Category:
RD SERIES
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (psi) | 10000 |
| Capacity Class (tonnage) | 9 |
| Maximum Cylinder Capacity Advance (tons) | 9 |
| Maximum Cylinder Capacity Retract (tons) | 5 |
| Stroke (in) | 1.13 |
| Collapsed Height A (in) | 8.75 |
| Extended Height B (in) | 9.88 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 1.77 |
| Cylinder Effective Area Retract (in2) | 0.98 |
| Oil Capacity Advance (in3) | 1.99 |
| Oil Capacity Retract (in3) | 1.1 |
| Cylinder Capacity Advance at 5000 psi (lbs) | 9000 |
| Cylinder Capacity Retract at 5000 psi (lbs) | 4910 |
| Surface Treatment | Paint |
| Weight (lbs) | 9 |
