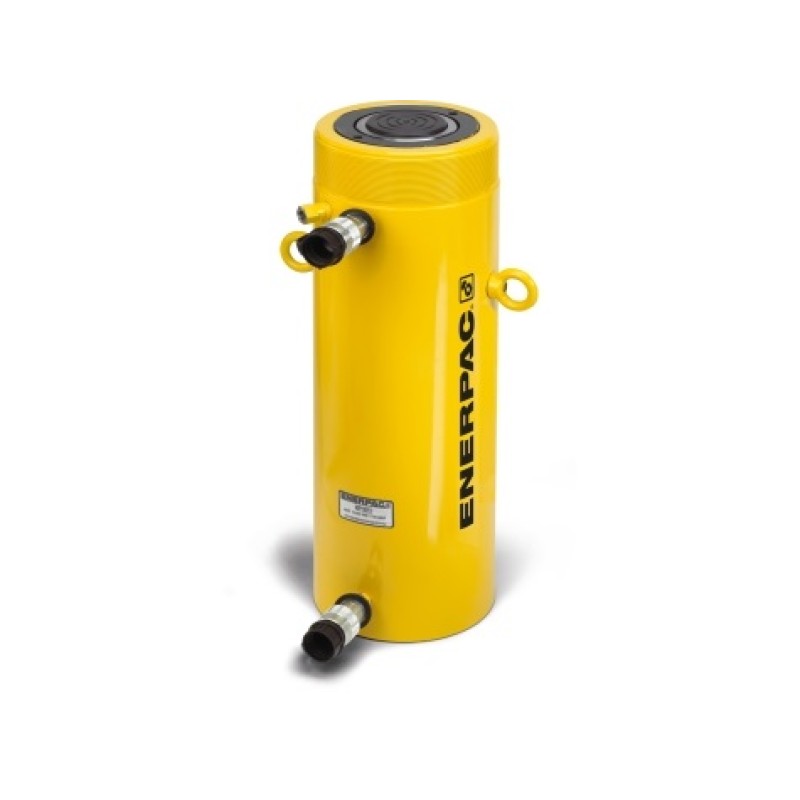

ENERPAC CYLINDER DOUBLE ACTING LONG STROKE 200T X 330MM RR20013
Category:
RR SERIES
- Collar threads, plunger threads and base mounting holes for easy fixturing
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over-pressurization
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 200 |
| Maximum Cylinder Capacity Advance (kN) | 1995 |
| Stroke (mm) | 330 |
| Collapsed Height A (mm) | 608 |
| Extended Height B (mm) | 938 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 285,0 |
| Cylinder Effective Area Retract (cm2) | 145,3 |
| Oil Capacity Advance (cm3) | 9405 |
| Oil Capacity Retract (cm3) | 4795 |
| Surface Treatment | Paint |
| Weight (kg) | 199 |
