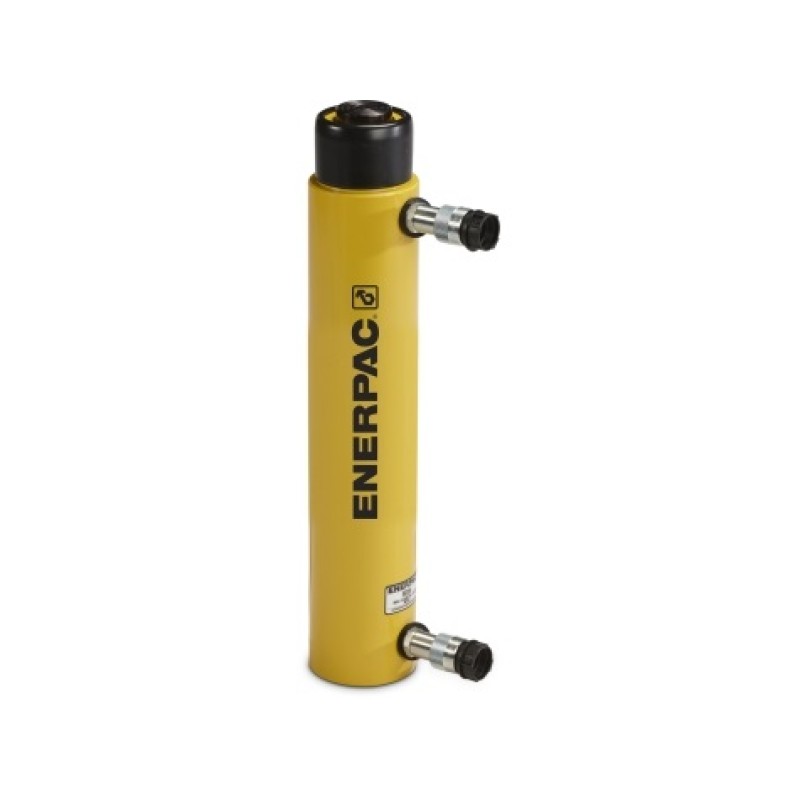

ENERPAC CYLINDER DOUBLE ACTING LONG STROKE 30T X 368MM RR3014
Category:
RR SERIES
- Collar threads, plunger threads and base mounting holes for easy fixturing
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over-pressurization
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 295 |
| Stroke (mm) | 368 |
| Collapsed Height A (mm) | 549 |
| Extended Height B (mm) | 917 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 42,1 |
| Cylinder Effective Area Retract (cm2) | 19,1 |
| Oil Capacity Advance (cm3) | 1549 |
| Oil Capacity Retract (cm3) | 703 |
| Surface Treatment | Paint |
| Weight (kg) | 29 |
