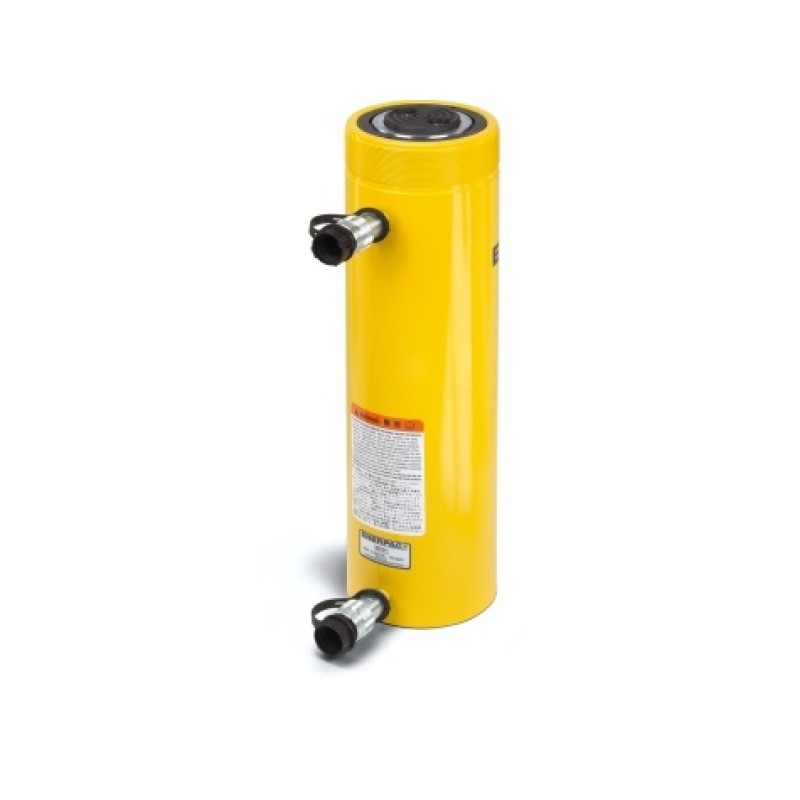

ENERPAC CYLINDER DOUBLE ACTING LONG STROKE 75T X 333MM RR7513
Category:
RR SERIES
- Collar threads, plunger threads and base mounting holes for easy fixturing
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over-pressurization
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 75 |
| Maximum Cylinder Capacity Advance (kN) | 718 |
| Stroke (mm) | 333 |
| Collapsed Height A (mm) | 525 |
| Extended Height B (mm) | 858 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 102,6 |
| Cylinder Effective Area Retract (cm2) | 31,4 |
| Oil Capacity Advance (cm3) | 3417 |
| Oil Capacity Retract (cm3) | 1046 |
| Surface Treatment | Paint |
| Weight (kg) | 68 |
