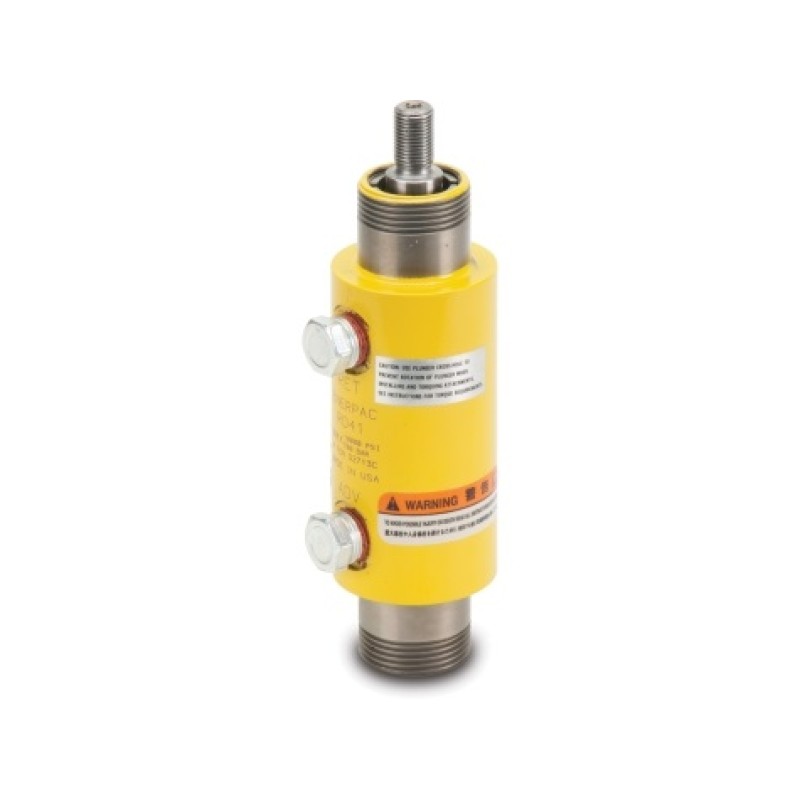

ENERPAC CYLINDER PRECISION DOUBLE ACTING 23T X 159MM BRD256
Category:
BRD SERIES
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Minimum Operating Pressure (bar) | 35 |
| Capacity Class (tonnage) | 25 |
| Maximum Cylinder Capacity Advance (kN) | 222 |
| Maximum Cylinder Capacity Retract (kN) | 98 |
| Stroke (mm) | 159 |
| Collapsed Height A (mm) | 424 |
| Extended Height B (mm) | 583 |
| Return Type | Double-Acting, Hydraulic Return |
| Cylinder Effective Area Advance (cm2) | 31,7 |
| Cylinder Effective Area Retract (cm2) | 13,7 |
| Oil Capacity Advance (cm3) | 504 |
| Oil Capacity Retract (cm3) | 218 |
| Cylinder Capacity Advance At 350 (bar) | 109,0 |
| Cylinder Capacity Retract At 350 (bar) | 47,8 |
| Surface Treatment | Paint |
| Weight (kg) | 16,0 |
