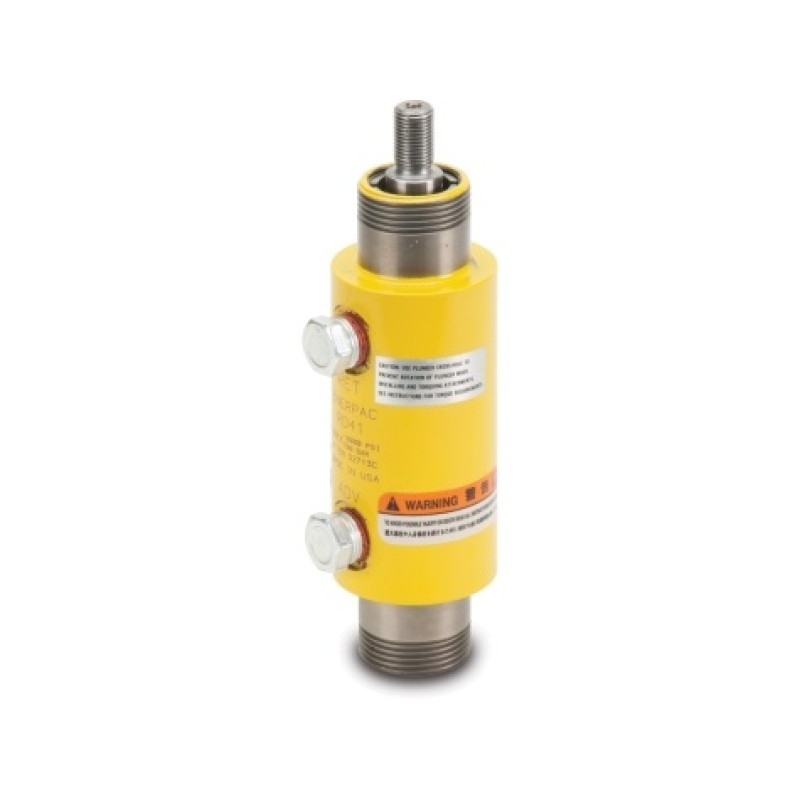

ENERPAC CYLINDER PRECISION DOUBLE ACTING 4T X 79MM BRD43
Category:
BRD SERIES
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Minimum Operating Pressure (bar) | 35 |
| Capacity Class (tonnage) | 4 |
| Maximum Cylinder Capacity Advance (kN) | 35 |
| Maximum Cylinder Capacity Retract (kN) | 16 |
| Stroke (mm) | 79 |
| Collapsed Height A (mm) | 237 |
| Extended Height B (mm) | 316 |
| Return Type | Double-Acting, Hydraulic Return |
| Cylinder Effective Area Advance (cm2) | 5,1 |
| Cylinder Effective Area Retract (cm2) | 2,2 |
| Oil Capacity Advance (cm3) | 40 |
| Oil Capacity Retract (cm3) | 17 |
| Cylinder Capacity Advance At 350 (bar) | 17,4 |
| Cylinder Capacity Retract At 350 (bar) | 7,7 |
| Surface Treatment | Paint |
| Weight (kg) | 2,6 |
