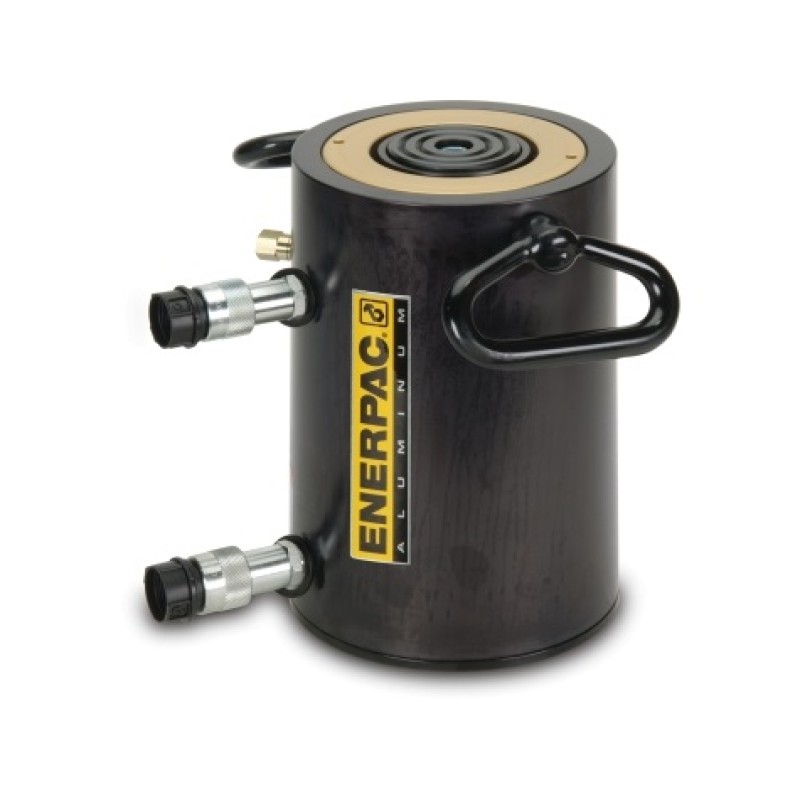

ENERPAC CYLINDER ALUMINIUM DOUBLE ACTING 150T X 200MM RAR1508
Category:
RAR SERIES
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 150 |
| Maximum Cylinder Capacity Advance (kN) | 1589 |
| Stroke (mm) | 200 |
| Collapsed Height A (mm) | 398 |
| Extended Height B (mm) | 598 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Aluminum |
| Cylinder Effective Area Advance (cm2) | 227,0 |
| Cylinder Effective Area Retract (cm2) | 132,0 |
| Oil Capacity Advance (cm3) | 4540 |
| Oil Capacity Retract (cm3) | 2640 |
| Surface Treatment | Anodized |
| Weight (kg) | 37,9 |
