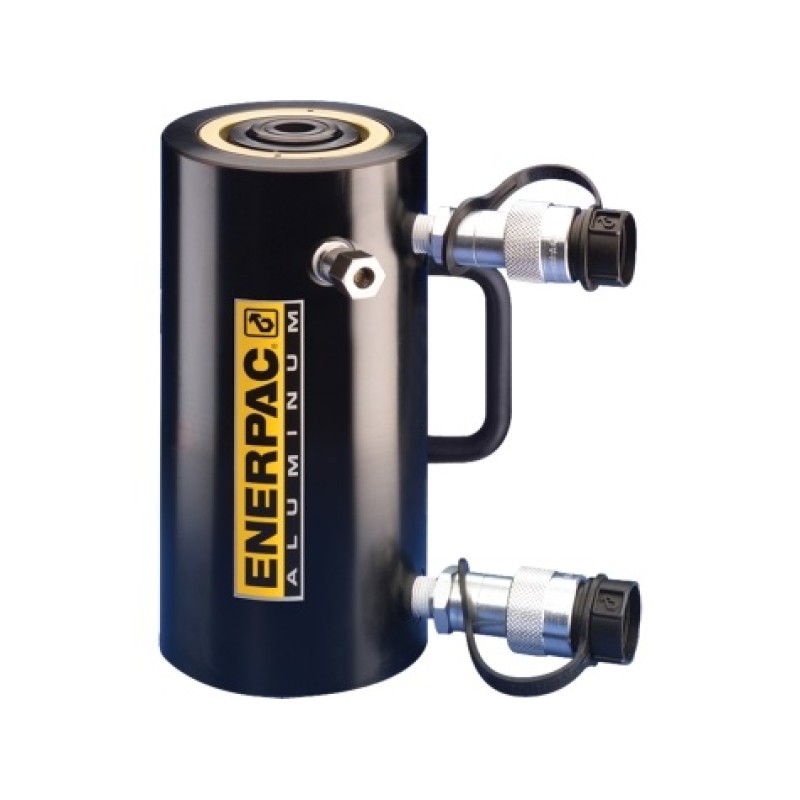

ENERPAC CYLINDER ALUMINIUM DOUBLE ACTING 30T X 250MM RAR3010
Category:
RAR SERIES
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 309 |
| Stroke (mm) | 250 |
| Collapsed Height A (mm) | 401 |
| Extended Height B (mm) | 651 |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Aluminum |
| Cylinder Effective Area Advance (cm2) | 44,2 |
| Cylinder Effective Area Retract (cm2) | 24,5 |
| Oil Capacity Advance (cm3) | 1105 |
| Oil Capacity Retract (cm3) | 613 |
| Surface Treatment | Anodized |
| Weight (kg) | 12,2 |
