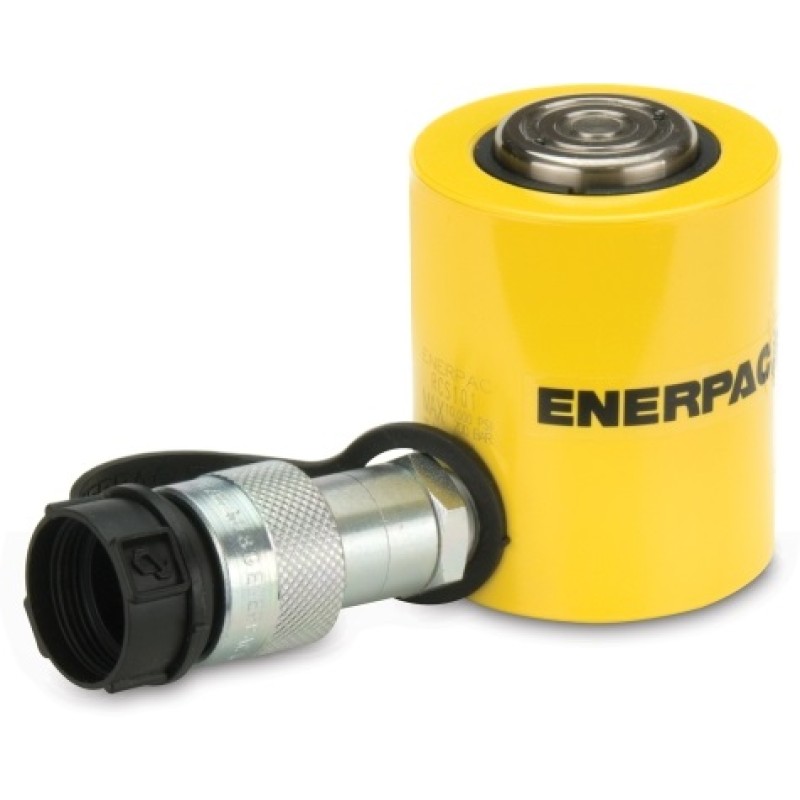

ENERPAC CYLINDER SINGLE ACTING LOW HEIGHT 10T X 38MM RCS101
Category:
RCS SERIES
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Single-acting spring return
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 10 |
| Maximum Cylinder Capacity Advance (kN) | 101 |
| Stroke (mm) | 38 |
| Collapsed Height A (mm) | 88 |
| Extended Height B (mm) | 126 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 14,5 |
| Oil Capacity Advance (cm3) | 55 |
| Surface Treatment | Paint |
| Weight (kg) | 2,7 |
