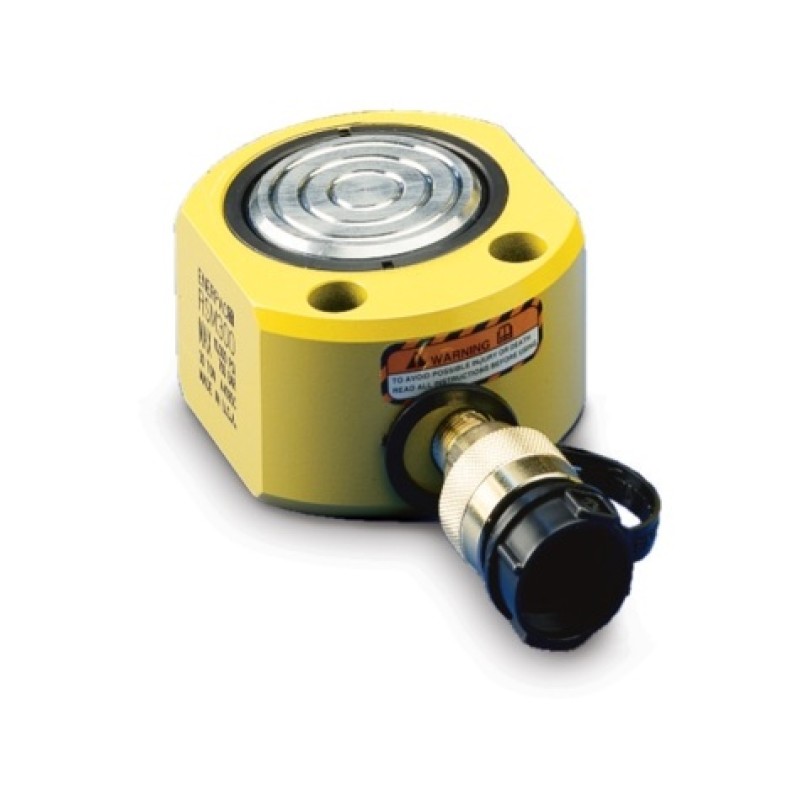

ENERPAC CYLINDER SINGLE ACTING LOW HEIGHT 30T X 13MM RSM300
Category:
RSM SERIES
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Single-acting spring return
- Replaceable links
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Single-acting spring return
- Replaceable links
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 295 |
| Stroke (mm) | 13 |
| Collapsed Height A (mm) | 58 |
| Extended Height B (mm) | 71 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 42,1 |
| Oil Capacity Advance (cm3) | 55 |
| Surface Treatment | Paint |
| Weight (kg) | 4,5 |
