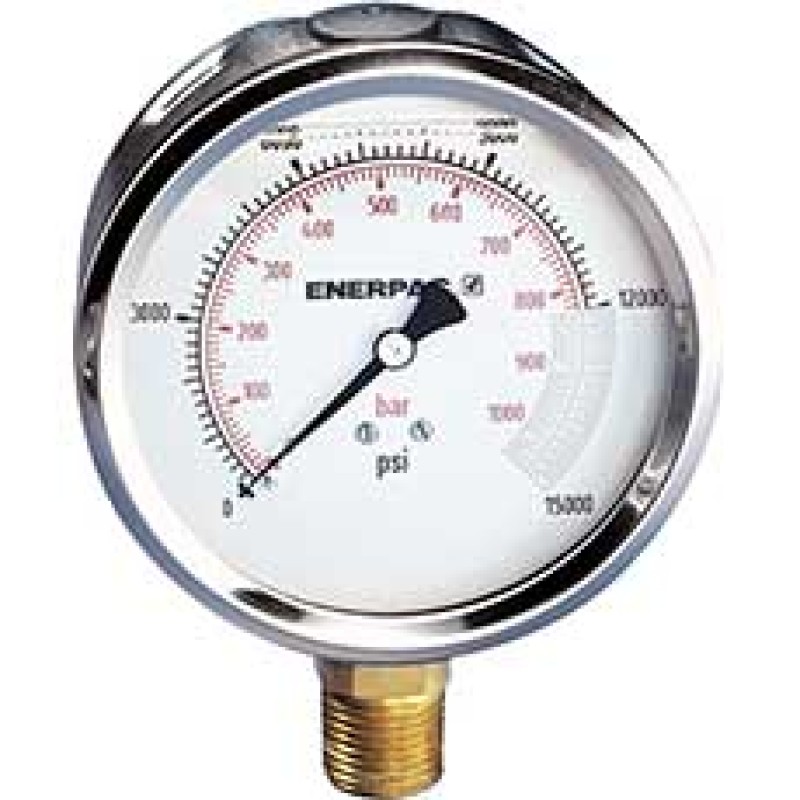

ENERPAC GAUGE G SERIES 1/2NPT LOW MOUNT 100MM FACE 0-15000 PSI G4040L
Category:
PRESSURE
- Dual scale reading calibrated in bar and psi
- All pressure sensing parts sealed and dampened by glycerine for long life
- Includes safety blow-out disk and pressure equalizing membrane
- Copper alloy, coiled safety Bourdon tube for 70 bar and higher
- ± 1.5% accuracy of full scale
- Gauge snubbers or needle valves recommended for high cycle applications.
Specifications
| Maximum Operating Pressure (bar) | 1000 |
| Style | Glycerine Filled |
| Face Diameter (mm) | 100 |
| Accuracy Percentage of Full Scale | 1 |
| Mount | Lower Mount |
| Major Graduation (bar) | 100 |
| Minor Graduation (bar) | 20 |
