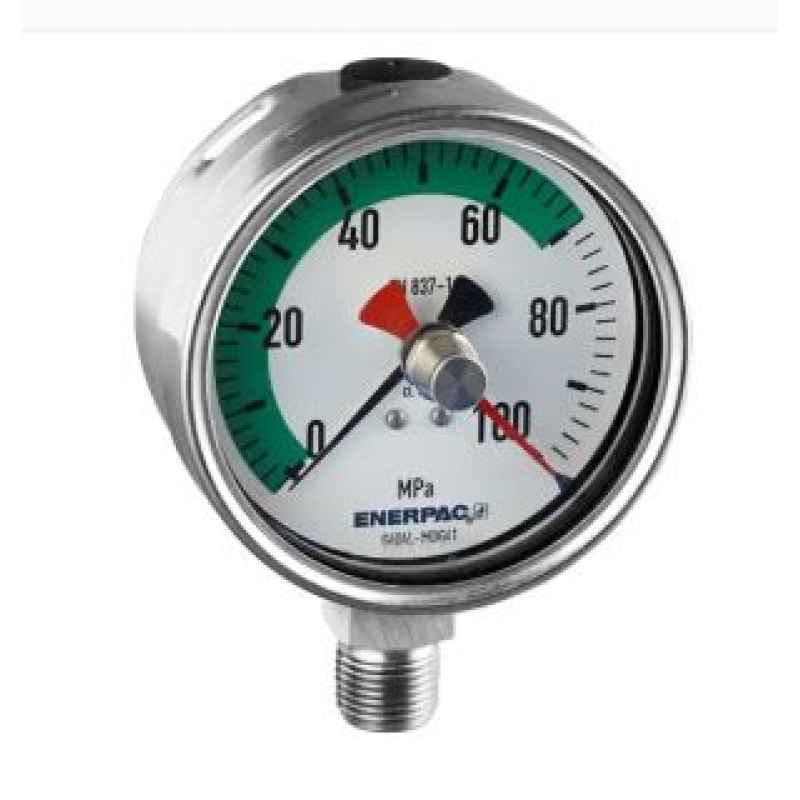

ENERPAC FORCE GAUGE 0-100KN LOWER MOUNT 100MM FACE S/S 700 BAR GF10B
Category:
FORCE & PRESSURE
- Calibrated with dual scale reading for pressure (bar) and force (kN)
- All pressure sensing parts are sealed and dampened by glycerine for long life
- Excellent readability: gauge face dimensions 100 mm
- Fast, easy installation
- Stainless steel gauge cases for corrosion resistance.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Style | Glycerine Filled |
| Face Diameter (mm) | 100 |
| Accuracy Percentage of Full Scale | 1 |
| Force (kN) | 0-100 |
| Units Per Division | 10 bar, 1 kN |
| Mount | Lower Mount |
| Material | Stainless Steel |
| Gauge Compatibility | All 10 ton RC, RCS and RSM Cylinders, 10 ton VLP Presses |
| Required Gauge Adaptor | GA1, GA2 |
