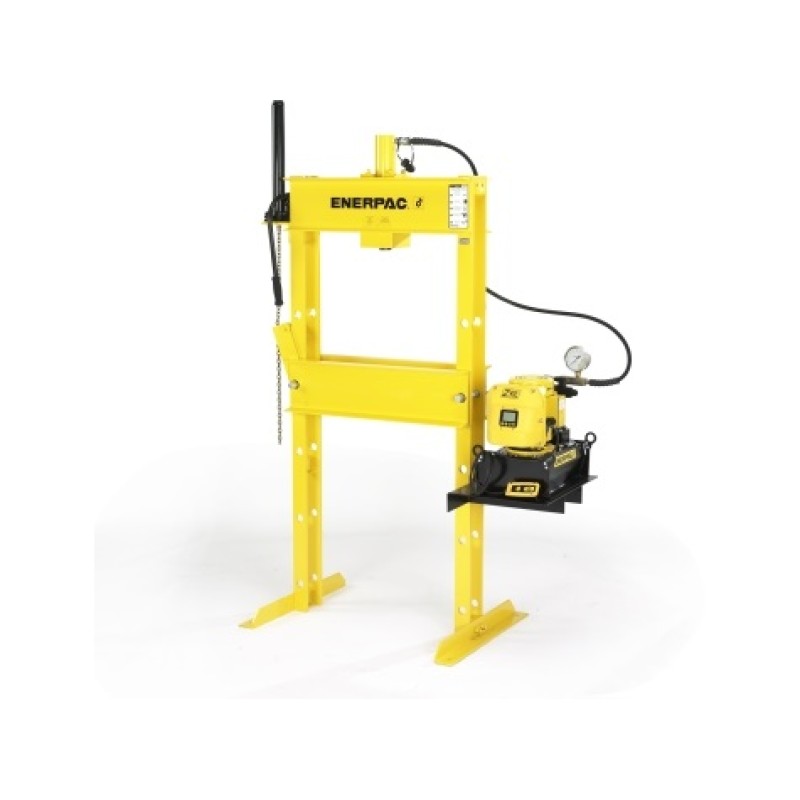

ENERPAC H-FRAME PRESS 25T WITH RC2514 CYLINDER & ELEC PUMP IPE2510A
Category:
H FRAME PRESS
- Quality welded frame for maximum strength and long life
- Exclusive “Hydra-Lift” bed for effortless adjustment of the vertical daylight (10 ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton and 30-ton are manual
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Press Capacity (kN) | 232 |
| Maximum Vertical Daylight (mm) | 1388 |
| Maximum Bed Width (mm) | 725 |
| Power Source Type | Electric |
| Power Source Valve | Electric |
| Compatible Cylinders | 25 ton RC-Cylinder |
| Cylinder Type | Single-Acting |
| Cylinder Stroke (mm) | 355 |
| Rapid Advance Speed (mm/sec) | 30,9 |
| Pressing Speed (mm/sec) | 2,8 |
| Vertical Daylight Minimum A (mm) | 180 |
| Vertical Daylight Maximum A (mm) | 1388 |
| Weight (kg) | 298 |
