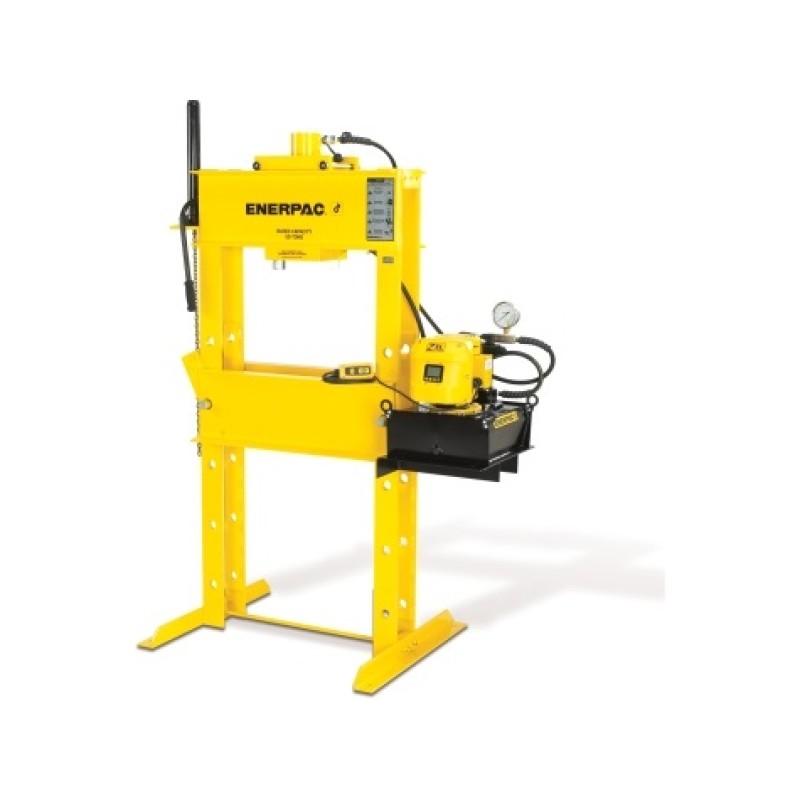

ENERPAC H-FRAME PRESS 50T WITH RC506 CYLINDER & ELEC PUMP IPE5005A
Category:
H FRAME PRESS
- Quality welded frame for maximum strength and long life
- Exclusive “Hydra-Lift” bed for effortless adjustment of the vertical daylight (10 ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton and 30-ton are manual
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Press Capacity (kN) | 498 |
| Maximum Vertical Daylight (mm) | 1406 |
| Maximum Bed Width (mm) | 736 |
| Power Source Type | Electric |
| Power Source Valve | Electric |
| Compatible Cylinders | 50 ton RC-Cylinder |
| Cylinder Type | Single-Acting |
| Cylinder Stroke (mm) | 159 |
| Rapid Advance Speed (mm/sec) | 7,7 |
| Pressing Speed (mm/sec) | 0,7 |
| Vertical Daylight Minimum A (mm) | 195 |
| Vertical Daylight Maximum A (mm) | 1406 |
| Weight (kg) | 440 |
