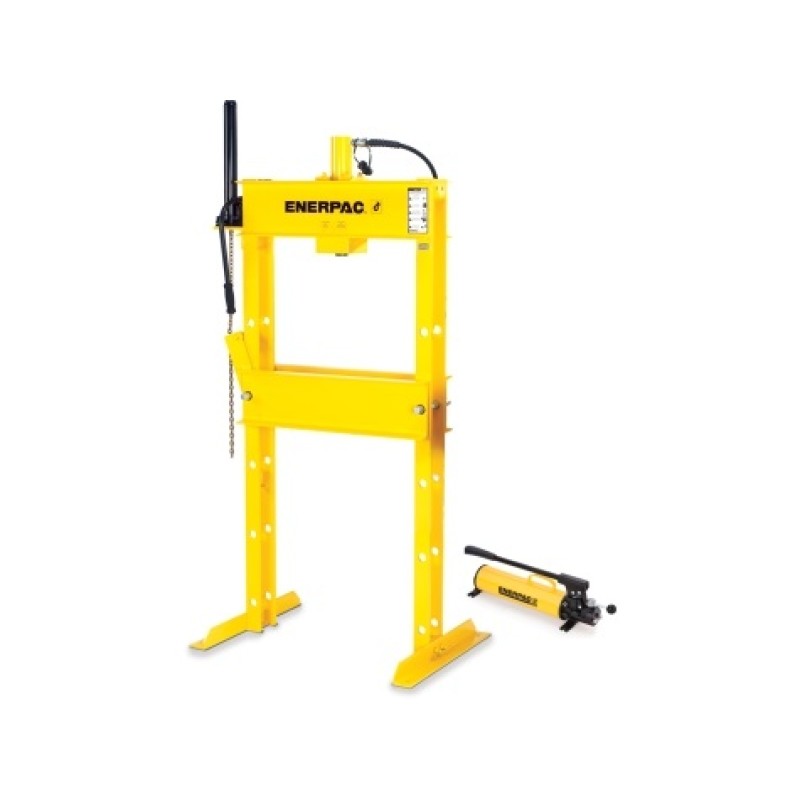

ENERPAC H-FRAME PRESS 10T WITH RR1010 CYLINDER HAND PUMP IPH1234A
Category:
H FRAME PRESS
- Quality welded frame for maximum strength and long life
- Exclusive “Hydra-Lift” bed for effortless adjustment of the vertical daylight (10 ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton and 30-ton are manual
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Press Capacity (kN) | 101 |
| Maximum Vertical Daylight (mm) | 1525 |
| Maximum Bed Width (mm) | 456 |
| Power Source Type | Manual |
| Power Source Valve | Manual |
| Compatible Cylinders | 10 ton RR-Cylinder |
| Cylinder Type | Double-Acting |
| Cylinder Stroke (mm) | 254 |
| Rapid Advance Speed (mm/sec) | [11,2] |
| Pressing Speed (mm/sec) | [1,7] |
| Vertical Daylight Minimum A (mm) | 128 |
| Vertical Daylight Maximum A (mm) | 1525 |
| Weight (kg) | 98 |
