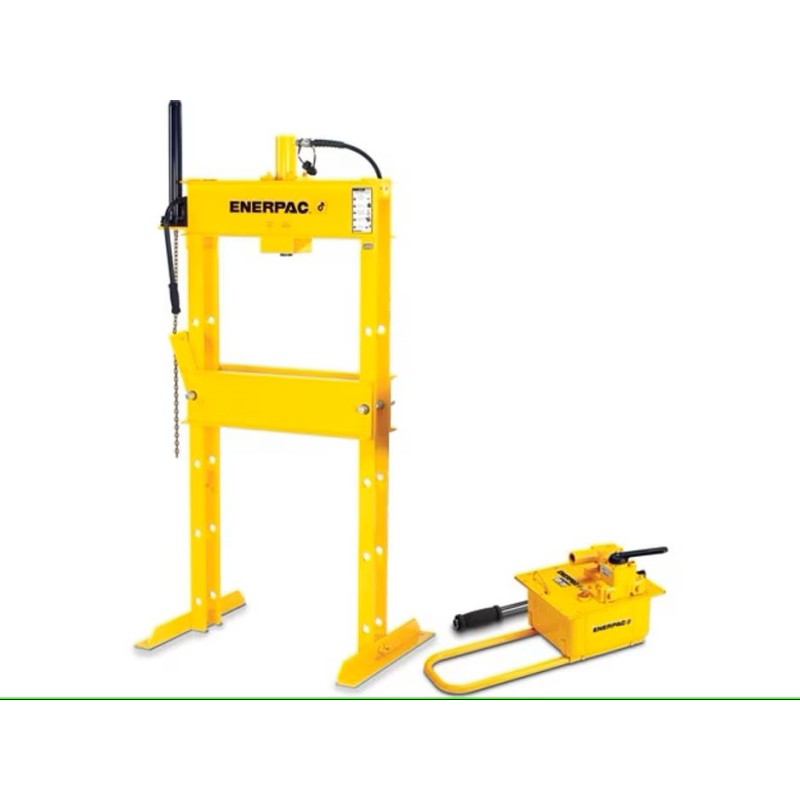

ENERPAC H-FRAME PRESS 50T WITH RR5013 CYLINDER HAND PUMP IPH5080A
Category:
H FRAME PRESS
- Quality welded frame for maximum strength and long life
- Exclusive “Hydra-Lift” bed for effortless adjustment of the vertical daylight (10 ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton and 30-ton are manual
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Press Capacity (kN) | 498 |
| Maximum Vertical Daylight (mm) | 1406 |
| Maximum Bed Width (mm) | 736 |
| Power Source Type | Manual |
| Power Source Valve | Manual |
| Compatible Cylinders | 50 ton RR-Cylinder |
| Cylinder Type | Double-Acting |
| Cylinder Stroke (mm) | 330 |
| Rapid Advance Speed (mm/sec) | [17,7] |
| Pressing Speed (mm/sec) | [0,7] |
| Vertical Daylight Minimum A (mm) | 195 |
| Vertical Daylight Maximum A (mm) | 1406 |
| Weight (kg) | 489 |
