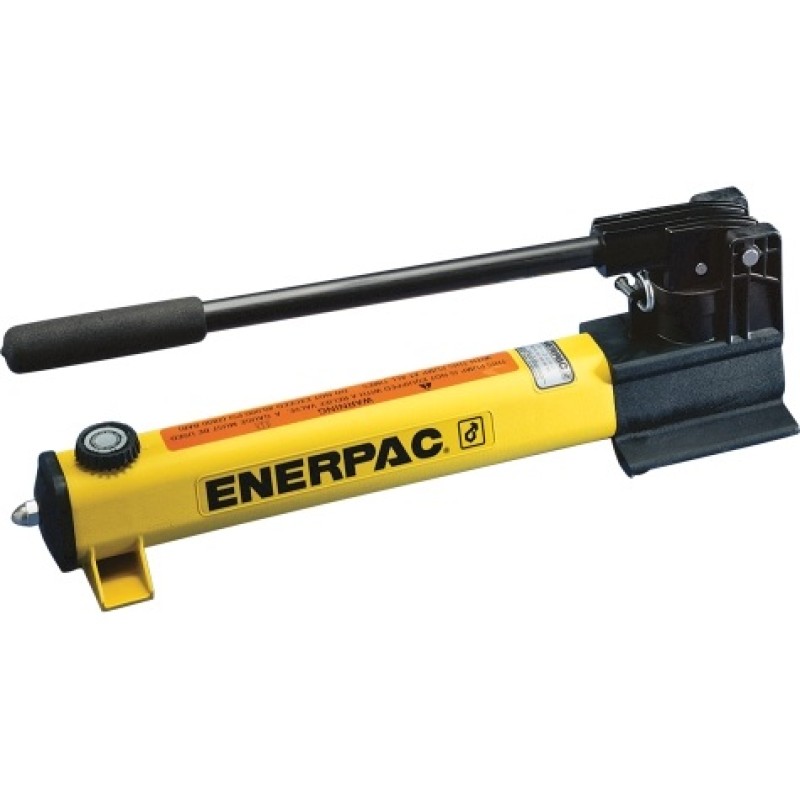

ENERPAC HAND PUMP 2 SPEED 3/4 UNF 13/2800 BAR P2282
Category:
HAND PUMPS
- Lightweight and compact design
- Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
- Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps
- Lower handle effort to minimize operator fatigue
- Handle lock and lightweight construction for easy carrying
- Large oil capacities to power a wide range of cylinders or tools
- Non-conductive fiberglass handle for operator safety
- Internal pressure relief valve for overload protection
Specifications
| Maximum Operating Pressure (bar) | 2800 |
| Pressure Rating 2nd Stage (bar) | 2800 |
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (cm3) | 983 |
| Usable Oil Capacity (cm3) | 983 |
| Maximum Flow at Rated Pressure | 0,61 cm3/stroke |
| Oil Displacement Per Stroke (cm3) | |
| Maximum Handle Effort (kg) | 48,1 |
| Piston Stroke (mm) | 25,4 |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight (kg) | 6,4 |
