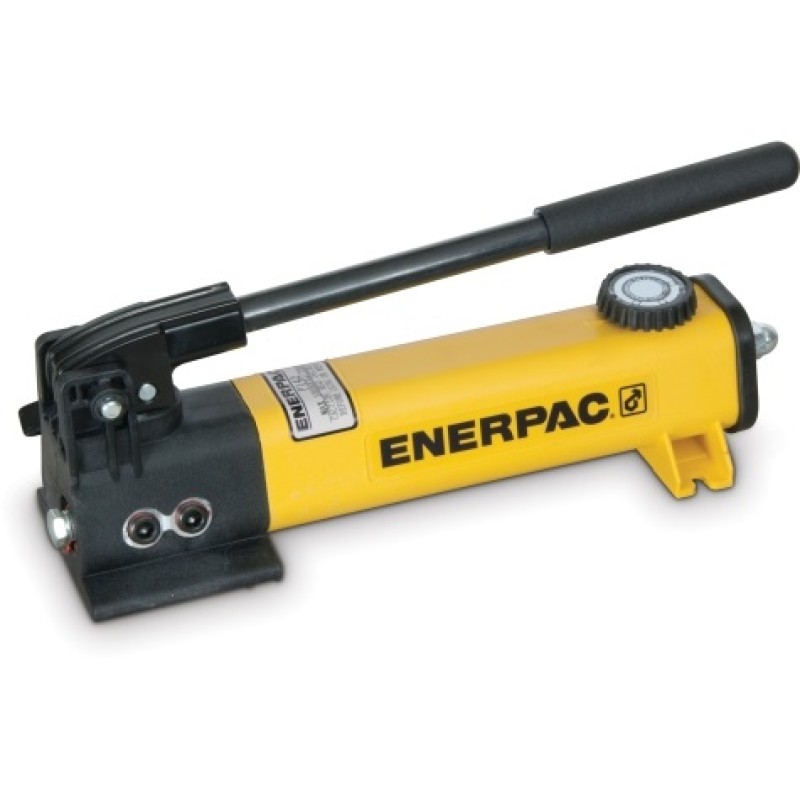

ENERPAC HAND PUMP 2 SPEED 1/4 NPT 13/700 BAR P142
Category:
HAND PUMPS
- Features Z-Class high efficency pump design, higher oil flow and bypass pressure
- Two-speed operation and high by-pass pressure reduces cycle time for improved productivity
- Full sight oil level glass on all reservoirs allow quick and easy oil level monitoring
- Available in two 4-cycle engine sizes: 4,1 kW Honda and 4,8 kW Briggs and Stratton
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Pressure Rating 1st Stage (bar) | 13 |
| Pressure Rating 2nd Stage (bar) | 700 |
| Cylinder Compatability | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity (cm3) | 327 |
| Usable Oil Capacity (cm3) | 327 |
| Maximum Flow at Rated Pressure | 0,90 cm3/stroke |
| Oil Displacement Per Stroke (cm3) | - |
| Oil Displacement Per Stroke 1st Stage (cm3) | 3,62 |
| Oil Displacement Per Stroke 2nd Stage (cm3) | 0,90 |
| Maximum Handle Effort (kg) | 35,4 |
| Piston Stroke (mm) | 12,7 |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight (kg) | 2,4 |
