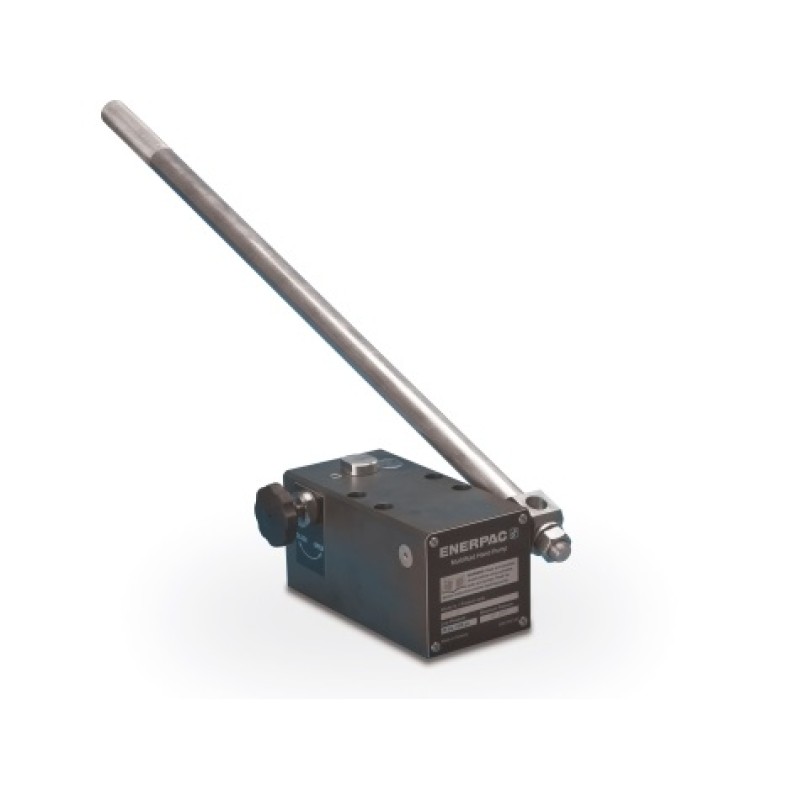

ENERPAC HAND PUMP MULTIFLUID TWO SPEED 110 BAR MP110
Category:
HAND PUMPS
- Superior corrosion resistance
- Standard Nitrile seals – can be used for a wide range of fluids such as demineralised water, oil/water emulsions, waterglycols, mineral oils
- Two speed pumps up to 1000 bar pressure
- Buna Nitrile seals can be exchanged with optional EPDM seal for use with Skydrol or brake fluids
- Impregnated aluminium anodized pump housing with stainless steel internal pumping components
- Externally adjustable pressure relief valve
- 1/4" NPTF gauge port
- For use with single-acting cylinders and tools.
- MP-Pump includes 1,5 mm thick gasket for reservoir mounting. MP-Series pumps requires the use of an external reservoir.
- MP-Series pumps are for use with single-acting cylinders and tools.
- Optional Reservoir Kit: Includes 10 litres tank with skid frame, top plate with reservoir seal, suction pipe and mounting bolts. Useable oil capacity is 7,4 litres. Order model number: MP10T
Specifications
| Maximum Operating Pressure (bar) | 110 |
| Pressure Rating 1st Stage (bar) | 35 |
| Pressure Rating 2nd Stage (bar) | 110 |
| Cylinder Compatability | Single-acting |
| Maximum Flow at Rated Pressure | 21,8 cm3/stroke |
| Oil Displacement Per Stroke 1st Stage (cm3) | 52,6 |
| Oil Displacement Per Stroke 2nd Stage (cm3) | 21,8 |
| Maximum Handle Effort (kg) | 45 |
| Piston Stroke (mm) | 26,5 |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight (kg) | 6,6 |
