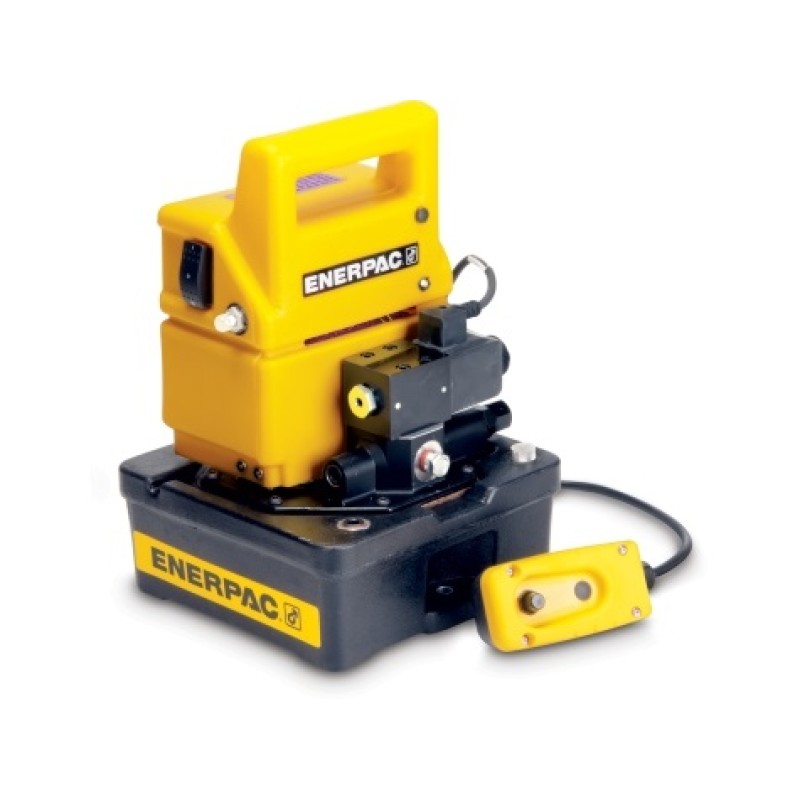

ENERPAC ELECTRIC HYDRAULIC PUMP COMPACT DUMP VALVE 1.9L OIL PUD1100E
Category:
ELECTRIC PUMPS
- The Economy pump is best suited to power small to medium size cylinders or hydraulic tools
- Its lightweight and compact design make it ideal for applications which require easy transport of the pump
- The universal motor works well on long extension cords or generator-driven electrical power supplies.
- Lightweight and compact design
- Large easy-carry handle for maximum portability
- Two-speed operation reduces cycle times for improved productivity
- 230 VAC 50/60-cycle universal motor will operate under poor voltage supply
- 24 VAC remote motor control, 3 m length for operator safety
- Starts under full load
- High strength molded shroud, with integral handle, protects motor from contamination and damage
- Designed for intermittent duty cycle
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Pressure Rating 1st Stage (bar) | 13 |
| Pressure Rating 2nd Stage (bar) | 700 |
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (cm3) | 1900 |
| Usable Oil Capacity (litres) | 1,9 |
| Maximum Flow at Rated Pressure | 0,32 l/min |
| Output Flow Rate 1st Stage (l/min) | 3,31 |
| Output Flow Rate 2nd Stage (l/min) | 0,32 |
| Motor Size (hp) | 0.5 |
| Motor Voltage | 208-240 V |
| Duty Cycle | Intermittent |
| Valve Function | Advance / Retract |
| Valve Type | Dump |
| Power Source | Electric |
| Pump Operation | Dump |
| Pump Control | Pendant |
| Motor Electrical Specification | 230 V |
| Current Draw (amps) | 9.5 |
| Sound Level (dBa) | 85 |
| Weight (kg) | 11,8 |
