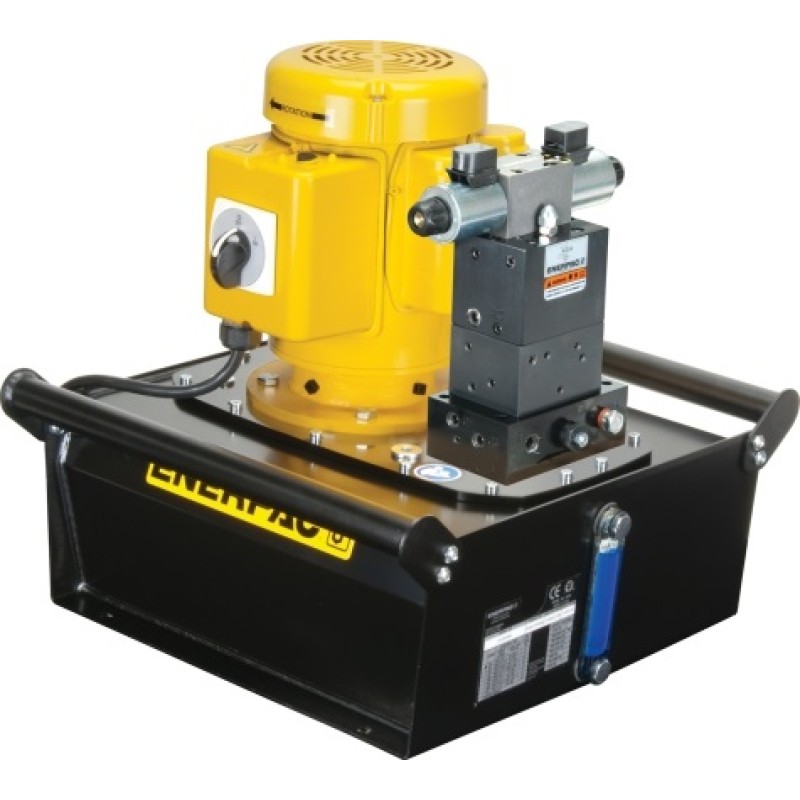

ENERPAC ELECTRIC PUMP 4/3 SOLENOID VALVE LCD 10L OIL 415V ZE6410SW
Category:
ELECTRIC PUMPS
- High-efficiency pump design – higher oil flow and by-pass pressure
- High-strength, moulded electrical box protects electronics, power supplies and LCD readout and stands up to harsh industrial environments
- IP54 protection and isolation class
- Back-lit LCD provides self test, diagnostic and read-out capabilities never before offered on an industrial pump (included on pump with electric valves, optional on other models)
- Totally enclosed, fan-cooled industrial electric motors for extended life
- User adjustable relief valve built-in on manual and solenoid valves. Oil ports on valves are 3/8" NPTF
- Steel fan guard on all electric motors
- Full sight oil level glass
- 40 micron filter breather with splash guard
- Durable steel reservoirs
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Cylinder Compatability | Double-acting |
| Reservoir Capacity (cm3) | 10000 |
| Usable Oil Capacity (litres) | 10,0 |
| Maximum Flow at Rated Pressure | 2,73 l/min |
| Output Flow Rate at 7 bar (l/min) | 12,29 |
| Output Flow Rate at 50 bar (l/min) | 12,15 |
| Output Flow Rate at 350 bar (l/min) | 2,86 |
| Output Flow Rate at 700 bar (l/min) | 2,73 |
| Motor Size (kW) | 5,60 |
| Motor Hertz | 50/60 Hz |
| Motor Phases | 3 Ph |
| Motor Voltage | 380-415 V |
| Duty Cycle | Extended |
| Valve Function | Advance / Hold / Retract |
| Valve Operation | Solenoid |
| Valve Type | 4-way, 3-position, Tandem Center |
| Valve Model | VE43 |
| Power Source | Electric |
| Pump Control | Pendant |
| Motor Electrical Specification | 380-415 V, 3 Ph, 50-60 Hz |
| Sound Level (dBa) | 80 |
| Relief Valve Adjustment Range (bar) | 70 - 700 |
| Weight (kg) | 85 |
