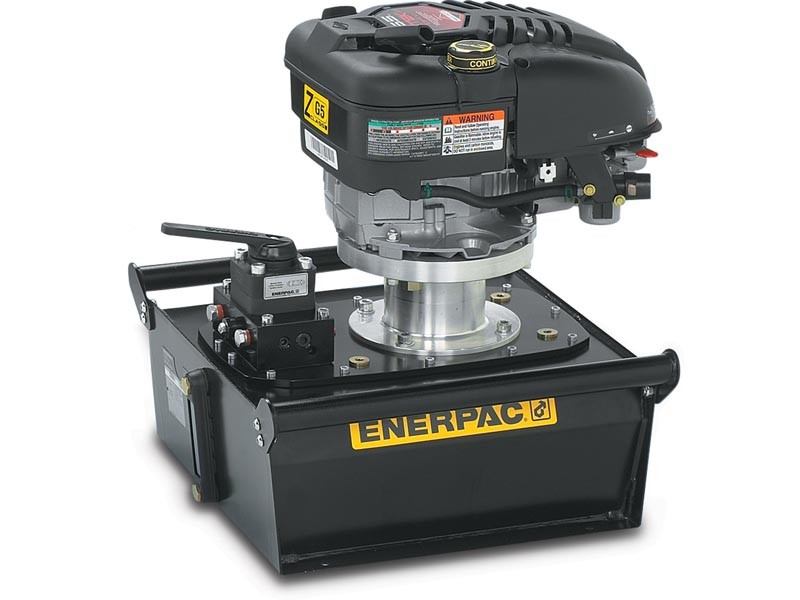

ENERPAC PUMP 4/3 MANUAL VALVE 4L OIL ROLL CAGE 4.8KW BRIGG ZG5410MX-BR
Category:
GASOLINE PUMPS
- Features Z-Class high efficency pump design, higher oil flow and bypass pressure
- Two-speed operation and high by-pass pressure reduces cycle time for improved productivity
- Full sight oil level glass on all reservoirs allow quick and easy oil level monitoring
- Available in two 4-cycle engine sizes: 4,1 kW Honda and 4,8 kW Briggs and Stratton
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Cylinder Compatability | Double-acting |
| Reservoir Capacity (cm3) | 10000 |
| Usable Oil Capacity (litres) | 10 |
| Maximum Flow at Rated Pressure | 1,6 l/min |
| Output Flow Rate at 7 bar (l/min) | 6,5 |
| Output Flow Rate at 50 bar (l/min) | 6,2 |
| Output Flow Rate at 350 bar (l/min) | 1,8 |
| Output Flow Rate at 700 bar (l/min) | 1,6 |
| Motor Manufacturer | Briggs & Stratton |
| Valve Function | Advance / Hold / Retract |
| Valve Operation | Manual |
| Valve Type | 4-way, 3-position, Tandem Center |
| Valve Model | VM43 |
| Power Source | Gasoline |
| Pump Control | Manual |
| Sound Level (dBa) | 91 - 95 |
| Relief Valve Adjustment Range (bar) | 70-700 |
| Weight (kg) | 50 |
