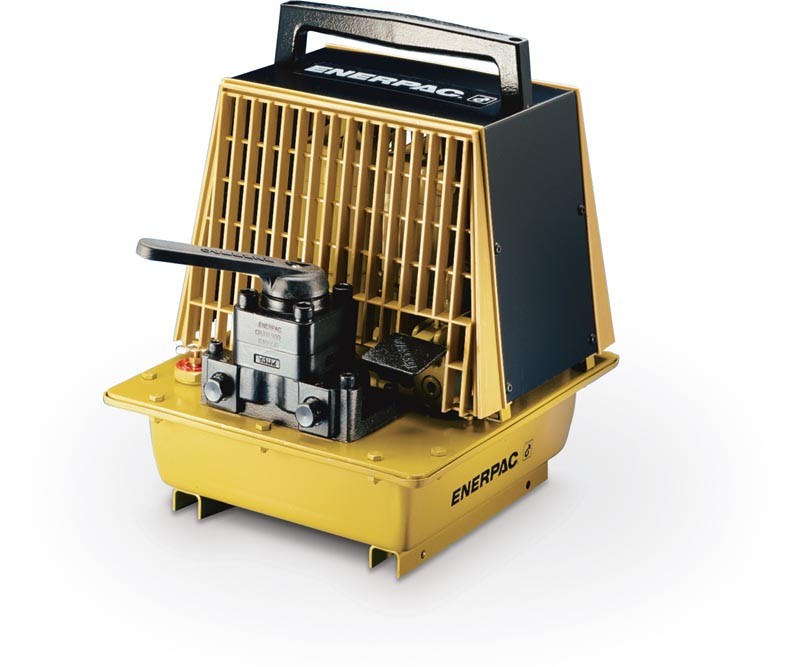

ENERPAC AIR HYDRAULIC PUMP 3/2 MANUAL VALVE 2.6L OIL PAM1021
Category:
AIR PUMPS
- Twin air motor configuration delivers high-flow performance in first stage, up to 14 bar, for rapid cylinder advance
- 4 liter reservoir for use with a wide range of cylinders
- Integral shroud protects air motors and provides easy portability
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (cm3) | 2600 |
| Reservoir Capacity (litres) | 4 |
| Usable Oil Capacity (litres) | 2,6 |
| Maximum Flow at Rated Pressure | 0,15 l/min |
| Output Flow Rate 1st Stage (l/min) | 10,65 |
| Output Flow Rate 2nd Stage (l/min) | 0,15 |
| Valve Function | Advance / Retract |
| Valve Operation | Manual |
| Valve Type | 3-way, 2-position |
| Valve Model | VM22 |
| Power Source | Air |
| Pump Control | Manual |
| Air Pressure Range (bar) | 4,1 - 8,3 |
| Air Consumption (l/min) | 510 |
| Sound Level (dBa) | 87 |
| Weight (kg) | 22,7 |
