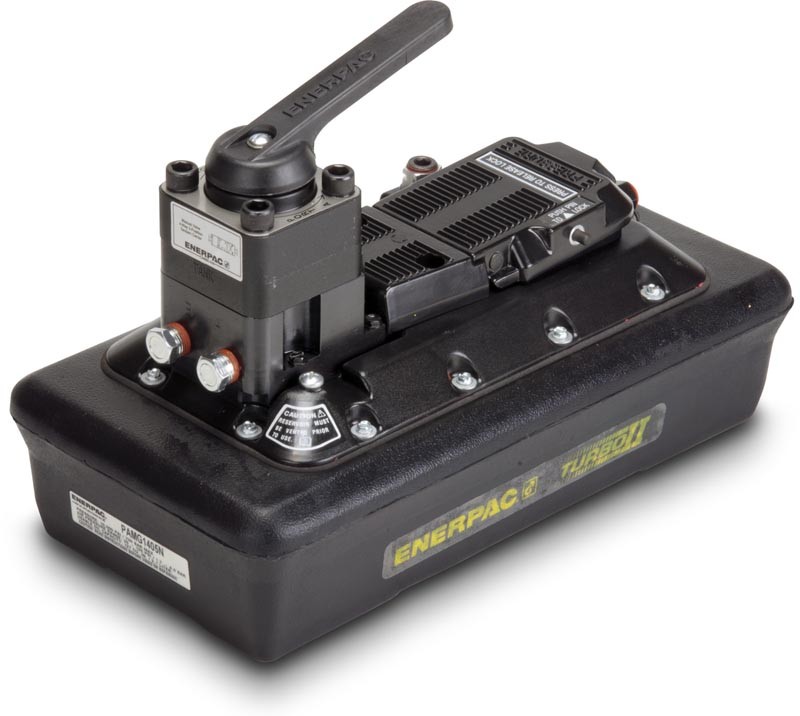

ENERPAC AIR HYDRAULIC PUMP 4/3 MANUAL 700 BAR 3770 CM3 OIL PAMG1405N
Category:
AIR PUMPS
- High efficiency cast aluminum air motor for increased life and reduced air consumption
- Reinforced heavy-duty reservoir for applications in tough environments
- High efficiency cast aluminium air motor
- New generation air saver piston with rugged one-piece design reduces air consumption and operating costs
- Return-to-tank port for use in remote valve applications
- Quieter operation – reduced noise level to 76 dBA
- Operating air pressure: 2,8 - 8,8 bar, enables pump to start at extremely low pressure
- External adjustable pressure relief valve (behind sight glass)
- Internal pressure relief valve provides overload protection
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Cylinder Compatability | Double-acting |
| Reservoir Capacity (cm3) | 3770 |
| Usable Oil Capacity (cm3) | 3770 |
| Maximum Flow at Rated Pressure | 0,16 l/min |
| Output Flow Rate No Load (l/min) | 1,0 |
| Output Flow Rate Load (l/min) | 0,16 |
| Valve Function | Advance / Hold / Retract |
| Valve Operation | Manual |
| Valve Type | 4-way, 3-position, Tandem Center |
| Valve Model | VM4 |
| Power Source | Air |
| Pump Control | Manual |
| Air Pressure Range (bar) | 2,8 - 8,8 |
| Air Consumption (l/min) | 340 |
| Weight (kg) | 12,7 |
