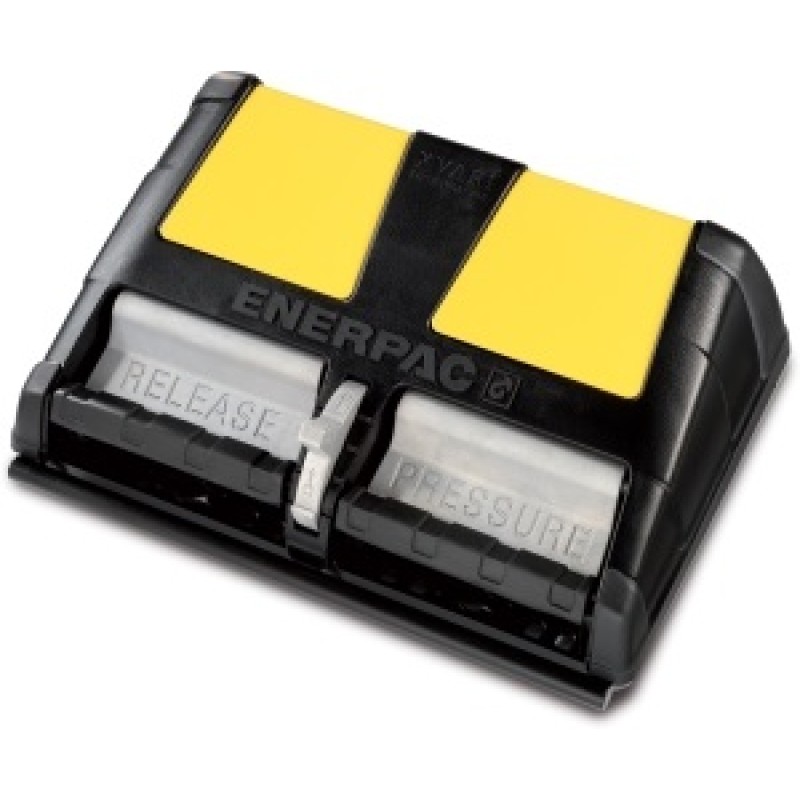

ENERPAC AIR DRIVEN HYDRAULIC FOOT PUMP 3/3 VALVE XA11
Category:
AIR PUMPS
- Ergonomic design for less operator fatigue
- Higher oil flow for increased productivity
- Variable oil flow and fine metering for precise control
- Closed hydraulic system prevents contamination and allows pump usage in any position
- Pedal lock function for retract position
- External adjustable pressure setting valve
- Ground screw for improved ATEX explosion safety.
- Integrated gauge with calibrated scale reading in bar, psi and MPa for actual pressure reading..
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (cm3) | 1000 |
| Usable Oil Capacity (litres) | 1,0 |
| Maximum Flow at Rated Pressure | 0,25 l/min |
| Output Flow Rate No Load (l/min) | 2,0 |
| Output Flow Rate Load (l/min) | 0,25 |
| Valve Function | Advance / Hold / Retract |
| Valve Operation | Manual |
| Valve Type | 3-way, 3-position |
| Power Source | Air |
| Pump Control | Manual |
| Air Pressure Range (bar) | 2,1 - 8,6 |
| Air Consumption (l/min) | 283 - 991 |
| Weight (kg) | 8,6 |
