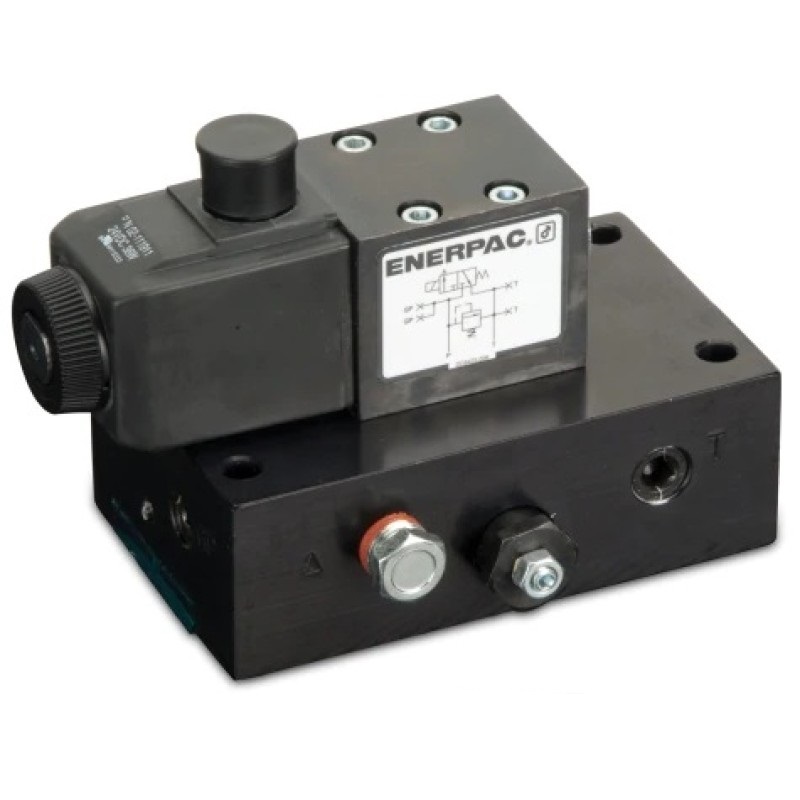

ENERPAC PUMP MOUNT CONTROL VALVE 3 WAY 2 POSITION SOLENOID DUMP VE32D
Category:
VE SERIES
- Advance/Hold/Retract operation for use with single-acting cylinders.
- For applications that require positive load holding, VC and VM Series valves are available with a pilotoperated check valve.
- This option provides hydraulic locking of the load until the valve is shifted into the retract position.
- Advance/Hold/Retract operation of single-acting cylinders
- Solenoid Operation
- Pump mounting will retrofit on most Enerpac Pumps
- User adjustable relief valves allow the operator to easily set the working pressure
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Valve Type | 3-Way, 2-Position, Dump |
| Function | Advance / Retract |
| Cylinder Compatibility | Single-Acting |
| Mounting Location | Pump Mounted |
| Valve Operation | Solenoid |
| Flow Capacity (l/min) | 17 |
| Pendant Compatibility | ZCP1 |
| Voltage | 24 VCC |
| Weight (kg) | 3,9 |
